MDQ-5 BSF

Name: MDQ-5 BSF
Brand: Bussmann
SKU: MDQ-5 BSF
Availability: InStock

MDQ-5 BSF

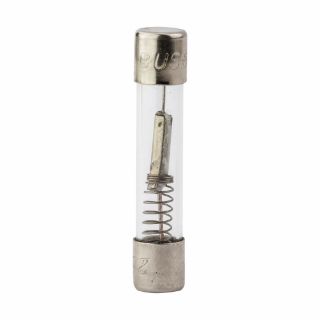

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

MDQ-5

product.name:

MDQ-5 BSF

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 21 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Bussmann

Type

Electronic Small Dimension

Description

Bussmann Time Delay Fuse, Electronic Small Dimension, Series: MDQ, Non-Indicating, Non-Rejection, 5 A, 250 VAC, 200 A Interrupt, 60 min, 120 s Response, Ferrule Terminal, Clip/Holder Mount, Cylindrical Body Type, Dual Element, Glass, 1/4 in Dia x 1-1/4 in L Body Size

Application

Electronic Relay and Control Circuit Applications

Standards

Standard 248-14 | UL Listed | UL File No. E19180, Guide JDYX | CSA Certified | UL File No. 47233, Class 1422-01

Features

Dual element design allows closer sizing to inductive circuits than any other fuses
200 A at 250 VAC interrupt rating
60 min maximum at 135%, 120 sec maximum at 200% response time

Specifications

Amperage Rating:	5 A
Body Size:	1/4 in Dia x 1-1/4 in L
Body Type:	Cylindrical
Country of Origin:	MX
Element:	Dual
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 A
Material:	Glass
Mounting Type:	Clip/Holder
Rejection/Non-Rejection:	Non-Rejection
Response Time:	60 min, 120 s
Series:	MDQ
Terminal Type:	Ferrule
Voltage Rating:	250 VAC
