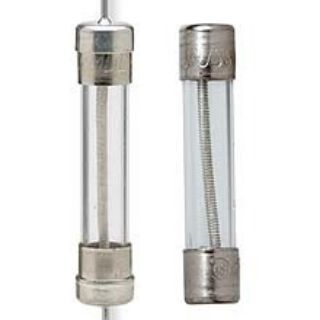

Actual Product May Vary From Image

MDL-8 BSF

Name: MDL-8 BSF
Brand: Bussmann
SKU: MDL-8 BSF
Availability: OutOfStock

Bussmann MDL-8 Electronic Time Delay Fuse With Nickel Plated Brass End Cap, 8 A, 250 VAC, 200 A/10 kA Interrupt, Cylindrical Body

Manufacturer: Bussmann

Manufacturer part number: MDL-8

Availability: Expected Leadtime 21 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Electronic

Description

Bussmann Time Delay Fuse, Electronic, Series: MDL, Non-Indicating, 8 A, 250 VAC, 200 A/10 kA Interrupt, 60 min, 12 s, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Glass, 1/4 in Dia x 1-1/4 in L Body

Application

Electronic Circuit Applications

Standards

CE Certified | UL 248-14 Guide JDYX | UL File No. E19180 | CSA 1422-0

Features

Time delay allows close sizing on inductive circuits
200 A at 250 VAC, 10 kA at 125 VAC interrupt rating
60 min maximum at 135%, 12 s minimum at 200%, 120 s maximum at 200% response time

Specifications

Amperage Rating:	8 A
Body Size:	1/4 in Dia x 1-1/4 in L
Body Type:	Cylindrical
Country of Origin:	TW
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 A/10 kA
Material:	Glass
Mounting Type:	Holder
Response Time:	60 min, 12 s, 120 s
Series:	MDL
Terminal Type:	Ferrule
Voltage Rating:	250 VAC
