Home / MDL-3 BSF

MDL-3 BSF

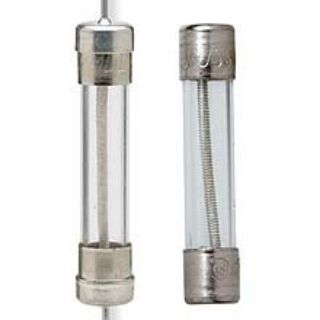

Picture of MDL-3 BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
MDL-3
product.name:
MDL-3 BSF
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Expected Leadtime 14 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Bussmann

Type

Electronic

Description

World leading supplier of fuses and fusible protection systems, Bussmann continues its 88-year history of blazing new trails of innovative technologies. Maker of the industry first truly global product line, each item is backed by an efficient worldwide network of distribution, customer service and technical support. Bussmann products include the most extensive circuit protection solutions approved for use in a variety of major standards: UL, CSA, IEC. . . Not to mention both European (DIN, British Standard) and North American styled fuses for a wide range of applications: industrial motor protection, power conversion, medium voltage, power distribution, telecommunications network equipment, electronics, and automotive.
Bussmann Time Delay Fuse, Electronic, Series: MDL, Non-Indicating, Non-Rejection, 3 A, 250 VAC, 100 A/10 kA Interrupt, 60 min, 120 s, 5 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body

Application

Electronic Circuit Applications

Standards

CE Certified | UL Listed | Guide JDYX File E19180 1/16-8A | CSA Certified Class 1422-01, 1/16-8A | UL Recognized | Guide JDYX2 File E19180, 9-30A | CSA Class 142230/9-30A | UL 248-14 | CSA Certified

Features

  • Time delay allows close sizing on inductive circuits
  • Broad amp size range allows improved compatibility between fuse and circuit operating characteristics
  • 3AG fuse size
  • 60 min maximum at 135%, 120 s maximum at 200%, 5 s minimum at 200% response time
  • Glass tube, nickel plated brass endcap construction
  • 100 A at 250 VAC, 10 kA at 125 VAC
  • 60 min maximum at 135%, 120 s maximum at 200%, 5 s minimum at 200%

Specifications

Amperage Rating:3 A
Body Size:1/4 in Dia x 1-1/4 in L
Body Type:Cylindrical
Country of Origin:TW
Element:Single
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:100 A/10 kA
Material:Glass
Mounting Type:Holder
Rejection/Non-Rejection:Non-Rejection
Response Time:60 min, 120 s, 5 s
Series:MDL
Terminal Type:Ferrule
Voltage Rating:250 VAC
