MDL-2 BSF

Name: MDL-2 BSF
Brand: Bussmann
SKU: MDL-2 BSF
Availability: OutOfStock

MDL-2 BSF

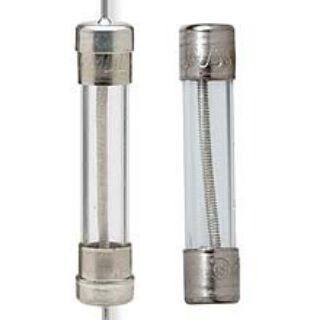

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

MDL-2

product.name:

MDL-2 BSF

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 14 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Bussmann

Type

Electronic

Description

Bussmann Time Delay Fuse, Electronic, Series: MDL, Non-Indicating, Non-Rejection, 2 A, 250 VAC, 100 A Interrupt, 60 min, 120 s, 5 s Response, Ferrule Terminal, Clip/Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body

Application

Electronic Circuit Applications

Standards

UL 248-14 | JDYX | JDYX2 E19180 | CSA Class 1422-01 | CE Certified

Features

60 min maximum at 135%, 5 s minimum at 200%, 120 s maximum at 200% response time

Specifications

Amperage Rating:	2 A
Body Size:	1/4 in Dia x 1-1/4 in L
Body Type:	Cylindrical
Country of Origin:	TW
Element:	Single
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	100 A
Material:	Glass
Mounting Type:	Clip/Holder
Rejection/Non-Rejection:	Non-Rejection
Response Time:	60 min, 120 s, 5 s
Series:	MDL
Terminal Type:	Ferrule
Voltage Rating:	250 VAC
