MDL-15 BSF

Name: MDL-15 BSF
Brand: Bussmann
SKU: MDL-15 BSF
Availability: OutOfStock

MDL-15 BSF

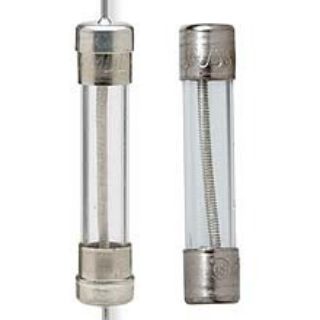

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

MDL-15

product.name:

MDL-15 BSF

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 21 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Bussmann

Type

Electronic

Description

Bussmann Time Delay Fuse, Electronic Small Dimension, Series: MDL, Non-Indicating, Non-Rejection, 15 A, 32 VAC/VDC, 1 kA Interrupt, 60 min, 120 s Response, Ferrule Terminal, Clip/Holder Mount, Cylindrical Body Type, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body Size

Application

Electronic Circuit Applications

Standards

UL 248-14 | Guide JDYX2 | UL File No. E19180 | CSA Certified | CSA Class 1422-30

Features

Time delay allows close sizing on inductive circuits
1000 A at 32 VAC interrupt rating
60 min maximum at 135%, 120 s maximum at 200% response time

Specifications

Amperage Rating:	15 A
Body Size:	1/4 in Dia x 1-1/4 in L
Body Type:	Cylindrical
Country of Origin:	MX
Element:	Single
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	1 kA
Material:	Glass
Mounting Type:	Clip/Holder
Rejection/Non-Rejection:	Non-Rejection
Response Time:	60 min, 120 s
Series:	MDL
Terminal Type:	Ferrule
Voltage Rating:	32 VAC/VDC
