MDL-1/4-R BSF

Name: MDL-1/4-R BSF
Brand: Bussmann
SKU: MDL-1/4-R BSF
Availability: InStock

MDL-1/4-R BSF

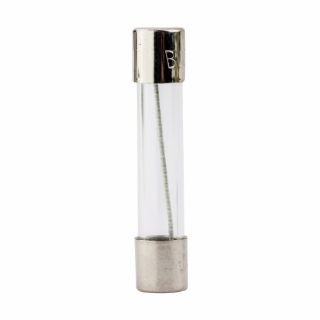

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

MDL-1/4-R

product.name:

MDL-1/4-R BSF

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 21 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Bussmann

Type

Electronic Small Dimension

Description

Bussmann Time Delay Fuse, Electronic Small Dimension, Series: MDL, Non-Indicating, Non-Rejection, 0.25 A, 250 VAC/32 VDC, 35 A Interrupt, 60 min, 5 to 120 s Response, Ferrule Terminal, Clip/Holder Mount, Cylindrical Body Type, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body Size

Application

Electronic Circuit Applications

Standards

RoHS 2011/65/EU | UL 248-14, Guide JDYX, File No. E19180 | CSA Class No. 1422-01 | CE Certified

Features

Time delay allows close sizing on inductive circuits
35 A at 250 VAC, 10 kA at 125 VAC interrupt rating
60 min maximum at 135%, 5 sec minimum at 200%, 120 sec maximum at 200% response time

Specifications

Amperage Rating:	0.25 A
Body Size:	1/4 in Dia x 1-1/4 in L
Body Type:	Cylindrical
Country of Origin:	TW
Element:	Single
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	35 A
Material:	Glass
Mounting Type:	Clip/Holder
Rejection/Non-Rejection:	Non-Rejection
Response Time:	60 min, 120 s, 5 s
Series:	MDL
Terminal Type:	Ferrule
Voltage Rating:	250 VAC
