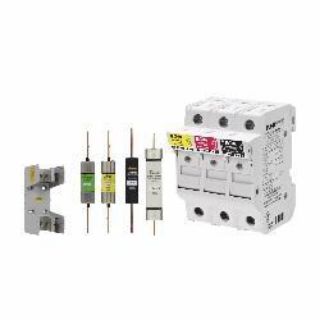

Actual Product May Vary From Image

MDA-12 BSF

Name: MDA-12 BSF
Brand: Bussmann
SKU: MDA-12 BSF
Availability: OutOfStock

Bussmann MDA-12 Electronic Small Dimension Time Delay Fuse With Nickel Plated Brass End Cap, 12 A, 250 VAC, 750 A/10 kA Interrupt, Cylindrical Body

Manufacturer: Bussmann

Manufacturer part number: MDA-12

Availability: Expected Leadtime 42 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Electronic Small Dimension

Description

Bussmann Time Delay Fuse, Electronic Small Dimension, Series: MDA, Non-Indicating, 12 A, 250 VAC, 750 A/10 kA Interrupt, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Ceramic, 1/4 in Dia x 1-1/4 in L Body

Application

Electronic Circuit Applications

Standards

Features

Ceramic body for higher amp/volt ratings
Inventory consolidation by replacing MDL fuses allows for reduced SKU investment and minimizing potential for misapplying fuse
750 A at 250 VAC, 10 kA at 125 VAC interrupt rating
60 min at 135%, 120 s at 200% response time

Specifications

Amperage Rating:	12 A
Body Size:	1/4 in Dia x 1-1/4 in L
Body Type:	Cylindrical
Country of Origin:	CN
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	750 A/10 kA
Material:	Ceramic
Mounting Type:	Holder
Response Time:	60 min, 120 s
Series:	MDA
Terminal Type:	Ferrule
Voltage Rating:	250 VAC
