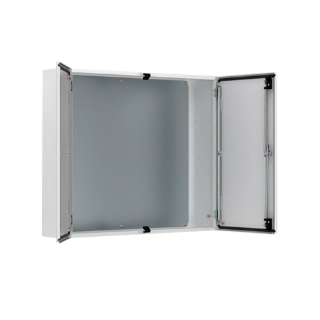

Picture of MAD1201230R5 HOF

Actual Product May Vary From Image

MAD1201230R5 HOF

Wall-Mount IP55 2Dr Enc w Pnl

Manufacturer: nVent HOFFMAN

Manufacturer part number: MAD1201230R5

Availability: Expected Leadtime 5 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

nVent HOFFMAN

Type

Mild Steel Wall Mounted Industrial Enclosures

Description

Double Door Enclosure, MAD, 47.24x47.24x11.81, Lt Gray, Mild Steel

Application

Factory Automation and Process Control; Controls and Drives

Specifications

Body Thickness (Imperial):	16 ga
Body Thickness (Metric):	1.5 mm
Cable Entry:	No
Color:	Light Gray
Color Code:	RAL 7035
Construction:	Body: 16 gauge Door: 14 gauge
Country of Origin:	MX
Cubic Capacity:	15 Cu-ft
Depth:	11.81
Door Thickness (Imperial):	14 ga
Door Thickness (Metric):	2 mm
Finish:	Powder Coat
Height:	47.24
Insulation:	None
Material:	Mild Steel
Mounting:	Wall Mounted
NEMA Rating:	NEMA Type 12 NEMA Type 13
Number of Outlet:	1
Panel Size (Imperial):	46.06 x 45.28 in
Panel Size (Metric):	1170 x 1150 mm
Protection Rating:	NEMA Type 12
Size:	47.24 x 47.24 x 11.81 inch
Weight (Imperial):	224.77 lb
Width:	47.24
With or Without Panel:	With
