Home / LS5129-3 LIT

LS5129-3 LIT

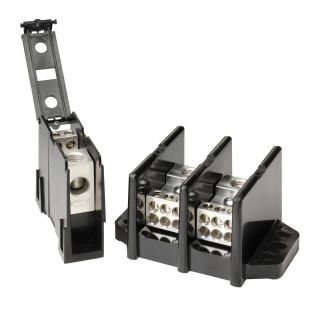

Picture of LS5129-3 LIT
Actual Product May Vary From Image

Product Details

Manufacturer:
Littelfuse
Manufacturer part number:
LS5129-3
product.name:
LS5129-3 LIT
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Littelfuse®

Type

Splicer Terminal

Description

POWR-BLOKS™ power distribution blocks offer a safe, convenient way of splicing cables, providing a fixed junction tap-off point or splitting primary power into secondary circuits. LX2XXX-DIN series offers integral DIN rail mount and an optional hinged safety cover.
Littelfuse® POWR-GARD® Splicer Block, Splicer Terminal, Series: LS Series, 600 VAC, 620 A, 3 Pole, 2 Primary Connections, 2 Secondary Connection, 4 AWG to 350 kcmil Wire, Thermoplastic, Black, 5.5 in H x 8.54 in W x 3.12 in D

Application

For anywhere power needs to be distributed to more than one load applications

Standards

RoHS Compliant | UL Listed | UL File No. E171395 | CSA Certified | CSA File No. LR700111 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

  • Two thread cutting screws are furnished for each cover
  • Covers are slotted for easy installation
  • 4 AWG to 350 kcmil aluminum line, 4 AWG to 350 kcmil aluminum load wire size
  • Bolt-in mount
  • (2) box lug primary, (2) box lug secondary

Specifications

Amperage Rating:620 A
Color:Black
Country of Origin:US
Dimensions:5.5 in H x 8.54 in W x 3.12 in D
Material:Thermoplastic
Number of Poles:3
Primary Connections/Pole:2
Secondary Connection/Pole:2
Series:LS Series
Voltage Rating:600 VAC
Wire Size:4 AWG to 350 kcmil
