LS2572-1 LIT

Name: LS2572-1 LIT
Brand: Littelfuse
SKU: LS2572-1 LIT
Availability: OutOfStock

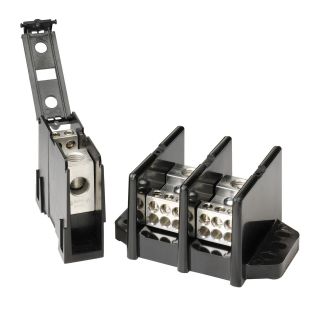

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

LS2572-1

product.name:

LS2572-1 LIT

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Littelfuse®

Type

Non-Indicating

Description

POWR-BLOKS™ power distribution blocks offer a safe, convenient way of splicing cables, providing a fixed junction tap-off point or splitting primary power into secondary circuits. LX2XXX-DIN series offers integral DIN rail mount and an optional hinged safety cover. Optional power distribution block covers provide protection against accidental shorting between poles caused by loose wires, tools or other conductive material. They also protect personnel from accidentally contacting energized connectors.

Littelfuse® POWR-BLOKS™ Splicer Block, Non-Indicating, Series: LS Series, 600 VAC, 175 A, 1 Pole, 1 Primary Connections, 1 Secondary Connection, 14 to 1/0 AWG Wire, Class J/T/RK1/RK5/G/CC Fuse, 100 kA Short Circuit Current Rating, Thermoplastic, Black, 2.88 in H x 1.13 in W x 1.78 in D

Application

For heating, air conditioning and refrigeration systems, elevator systems, material handling equipment, control panels, motor controls, switchgear and anywhere power needs to be distributed to more than one load applications

Standards

RoHS Compliant | UL File No. E171395 | CSA File No. LR700111 | UL 94 V-0 Flammability Rating | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

(1) 14 to 1/0 AWG line/load wire size

Specifications

Amperage Rating:	175 A
Color:	Black
Country of Origin:	US
Dimensions:	2.88 in H x 1.13 in W x 1.78 in D
Fuse Type:	Class J/T/RK1/RK5/G/CC
Material:	Thermoplastic
Number of Poles:	1
Primary Connections/Pole:	1
Secondary Connection/Pole:	1
Series:	LS Series
Short Circuit Current Rating:	100 kA
Voltage Rating:	600 VAC
Wire Size:	14 to 1/0 AWG
