LRCSM1 3/16 TKN

Name: LRCSM1 3/16 TKN
Brand: Timken
SKU: LRCSM1 3/16 TKN
Availability: OutOfStock

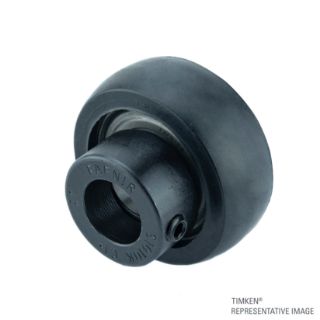

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

LRCSM1 3/16

product.name:

LRCSM1 3/16 TKN

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Timken® Fafnir®

Description

Designed to maximize performance, Timken® Fafnir® ball bearing housed units combine the bearing, housing, seal and locking system into one device for easy installation and operation. Timken Fafnir housed units feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line

Rubber Cartridge Unit | 30.18 mm 1.19 in Bore 62 mm 2.44 in OD

Features

Super-quiet, synthetic conductive rubber cylindrical cartridges are designed for domestic heating, airconditioning, ventilating equipment and many other applications where low-cost, light-duty, and noiseless operation is essential
An initial supply of long-life grease is provided in the one-piece, non-relubricatable cartridges made of high-grade, durable molded synthetic rubber.

Specifications

Bearing Material:	Steel
Bearing Type:	Wide Inner Ring Ball Bearing Insert
Bore Size (ID) - in:	1.188
Bore Size (ID) - mm:	30.1752
Bore Type:	Round
Component (I/R; O/R assembly):	Assembly
Duty Type:	Standard duty
Dynamic Load Rating:	2970
Housing Material:	Cast Iron
Housing Style:	Round rubber housing
Inner Ring Width - Inch:	1.03125
Inner Ring Width - Millimeter:	26.19375
Insert Part Number:	N/P
Internal Clearance:	P(C3)
Load Rating UOM:	LB
Locking Type:	Eccentric
Lubrication Hole/Groove:	NO
Manufacturer Product Page Link:	https://www.timken.com/products/timken-engineered-bearings/housed-units/
Material - Rolling Elements (Ball or Roller):	Steel
Outer Diameter - in:	2.4409
Outer Diameter - mm:	61.99886
Outer Diameter Type:	Spherical
Outer Ring Width - Inch:	0.512
Outer Ring Width - Millimeter:	13.0048
Overall Height - in:	1.276
Overall Height - mm:	32.4104
Overall Length - in:	1.88
Overall Length - mm:	47.752
Overall Width - in:	0.71
Overall Width - mm:	18.034
Precision class:	ISO Normal/ABEC1
Relubricatable:	YES
Retainer Material:	Nylon
Retainer Type:	One Piece Molded Nylon
Rolling Element:	Ball
Static Load Rating:	1870
