LPSM001ID LIT

Name: LPSM001ID LIT
Brand: Littelfuse
SKU: LPSM001ID LIT
Availability: OutOfStock

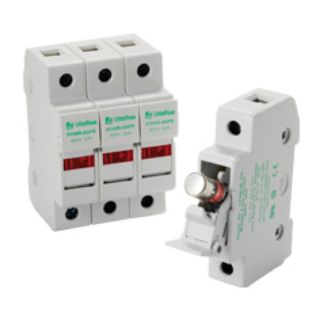

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

LPSM001ID

CBT Inventory

Vendor Inventory

CBT - CINCINNATI

CBT - SPRINGBORO

CBT - SIDNEY

CBT - LEXINGTON

CBT - LOUISVILLE

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Littelfuse®

Type

Dead Front Indicating

Alternate Supplier #

Grainger - 14H380

Description

The LPSM midget fuse holder series is a dead front design providing protection to personnel when installing and removing fuses. The compact fuse holder mounts quickly onto 35 mm DIN rail, decreasing panel layout and assembly time. This product has two quick connect terminals on both the top and bottom of the holder, offering an additional connection option. Littelfuse® POWR-SAFE™ in dead front in holders provide optimum protection to personnel. Indicating and non-indicating versions are available in 1, 2, 3 or 4 poles for class CC and midget fuses.

Littelfuse® POWR-GARD® POWR-SAFE Fuse Holder, Dead Front Indicating, Series: LPSM, 600 VAC/VDC, 30 A, 1 Pole, Class: CC, Box Lug Connection, 14 to 8 AWG Wire, DIN Rail Mounting, For Use With: 10 x 38 mm Midget Fuse, Thermoplastic, White, 3.06 in L x 0.7 in W x 2.33 in H Dimensions

Standards

UL E14721 | CSA LR7316 | PROP65:This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

Littelfuse® POWR-SAFE dead front holders provide optimum protection to personnel for class CC and midget style fuses
Easy installation and fuse removal with no additional pullers or tools required
Ventilated design for cooler operation
14 to 8 AWG Cu wire size
35 mm DIN rail mounting
Meets dead front requirements
Compact design
Indicates above 80 V

Specifications

Amperage Rating:	30 A
Class:	CC
Color:	White
Connection Type:	Box Lug
Country of Origin:	CN
Dimensions:	3.06 in L x 0.7 in W x 2.33 in H
Material:	Thermoplastic
Mounting Type:	DIN Rail
Number of Poles:	1
Series:	LPSM
Suitable For Use With:	10 x 38 mm Midget Fuse
Voltage Rating:	600 VAC/VDC
Wire Size:	14 to 8 AWG
