LPSC002ID LIT

Name: LPSC002ID LIT
Brand: Littelfuse
SKU: LPSC002ID LIT
Availability: InStock

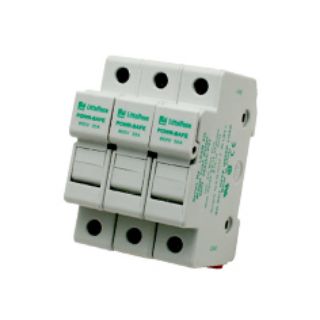

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

LPSC002ID

product.name:

LPSC002ID LIT

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Littelfuse®

Type

Dead Front Indicating

Description

Littelfuse® POWR-SAFE in dead front in holders provide optimum protection to personnel. Indicating and non-indicating versions are available in 1, 2, 3 or 4 poles for class CC and midget fuses.

Littelfuse® POWR-SAFE Fuse Holder, Dead Front Indicating, Series: LPSC, 600 VAC/VDC, 30 A, 2 Pole, Class: CC, Pressure Plate Connection, 14 to 8 AWG Wire, DIN Rail Mounting, For Use With: Class CC Fuse, Thermoplastic, 1.4 in W x 2.33 in D x 3.06 in H Dimensions

Standards

UL E14721 | CSA LR7316 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.

Features

Provide optimum protection to personnel
Meets dead front requirements
Easy installation and removal of fuses
No special fuse pullers or tools required
Compact design
Ventilated design for cooler operation
Indicates above 80 V
14 to 8 AWG Cu wire size
35 mm DIN rail mounting

Specifications

Amperage Rating:	30 A
Class:	CC
Connection Type:	Pressure Plate
Country of Origin:	CN
Dimensions:	1.4 in W x 2.33 in D x 3.06 in H
Material:	Thermoplastic
Mounting Type:	DIN Rail
Number of Poles:	2
Series:	LPSC
Suitable For Use With:	Class CC Fuse
Voltage Rating:	600 VAC/VDC
Wire Size:	14 to 8 AWG
