LPS-RK-300SPI BSF

Name: LPS-RK-300SPI BSF
Brand: Bussmann
SKU: LPS-RK-300SPI BSF
Availability: OutOfStock

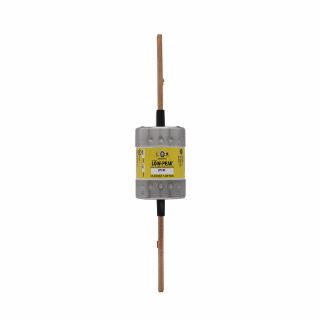

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

LPS-RK-300SPI

product.name:

LPS-RK-300SPI BSF

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 24 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Bussmann

Type

Current Limiting Time Delay

Alternate Supplier #

Grainger - 1PVZ5

Description

Ultimate protection Class RK1 current-limiting, dual element, time-delay fuses available with optional open fuse indication.

Bussmann Low-Peak™ Fuse, Current Limiting Time Delay, Series: LPS-RK, Indicating/Non-Indicating: Indicating, Rejection/Non-Rejection: Rejection, 300 A, 600 VAC/300 VDC, 300/100 kAIC Interrupt, Class: RK1, 10 s at 500% Response, Blade End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 2.36 in Dia x 11.63 in L Body Size

Application

Branch Circuit, Large Distribution Switchboards, Power Panelboard, Motor Control Centers and Machinery Disconnect Switches, Safety and Security Systems

Standards

CE Certified | CSA C22.2 File No.53787/248.12 | UL File No.E4273 Guide JDDZ

Features

Current limitation for maximum short circuit protection and reduced arc flash hazard
Easy selective coordination with all Low-Peak™ fuses using simple 2:1 ampacity ratio
No damage type 2 protection for IEC and NEMA starters when properly sized
High inrush current motor protection
Time delay permits 130% FLA sizing for back-up motor overload protection and 1 ph protection
Low wattage loss power consumption
Electrically isolated end caps for additional safety
VAC interrupt rating that exceeds requirements for virtually all applications

Specifications

Amperage Rating:	300 A
Body Size:	2.36 in Dia x 11.63 in L
Body Type:	Cartridge
Class:	RK1
Country of Origin:	MX
Element:	Dual
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	100/300 kA
Material:	Melamine
Mounting Type:	Holder
Rejection/Non-Rejection:	Rejection
Response Time:	10 s at 500%
Series:	LPS
Terminal Type:	Blade
Voltage Rating:	600 VAC/300 VDC
