LPS-RK-250SP BSF

Name: LPS-RK-250SP BSF
Brand: Bussmann
SKU: LPS-RK-250SP BSF
Availability: OutOfStock

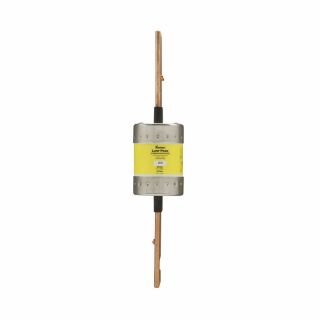

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

LPS-RK-250SP

product.name:

LPS-RK-250SP BSF

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Bussmann

Type

Low Voltage Current Limiting

Alternate Supplier #

Grainger - 6F331

Description

Bussmann Low-Peak™ Time Delay Fuse, Low Voltage Current Limiting, Series: LPS, Indicating/Non-Indicating: Non-Indicating, 250 A, 600 VAC/300 VDC, 100/300 kA Interrupt, Class: RK1, 10 s at 500% Response, Blade Terminal, Holder Mount, Cartridge Body Type, Dual Element, 2.36 in Dia x 11.63 in L Body Size

Application

Branch Circuit, Large Distribution Switchboards, Power Panelboard, Motor Control Centers and Machinery Disconnect Switches, Safety and Security Systems

Standards

Features

Current limitation for maximum short circuit protection and reduced arc flash hazard
Easy selective co-ordination with all Low-Peak™ fuses using simple 2:1 ampacity ratio
No damage type 2 protection for IEC and NEMA starters when properly sized
High inrush current motor protection
Time-delay permits 130% FLA sizing for back-up motor overload protection and single phasing protection
Low watt loss power consumption
Electrically isolated end caps for additional safety
VAC interrupting rating that exceeds requirements for virtually all applications
300 kA at 600 VAC rms symmetrical, 100 kA at 300 VDC interrupt rating

Specifications

Amperage Rating:	250 A
Body Size:	2.36 in Dia x 11.63 in L
Body Type:	Cartridge
Class:	RK1
Country of Origin:	MX
Element:	Dual
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	100/300 kA
Material:	Melamine
Mounting Type:	Holder
Rejection/Non-Rejection:	Rejection
Response Time:	10 s at 500%
Series:	LPS
Terminal Type:	Blade
Voltage Rating:	600 VAC/300 VDC
