LPS-RK-200SP BSF

Name: LPS-RK-200SP BSF
Brand: Bussmann
SKU: LPS-RK-200SP BSF
Availability: OutOfStock

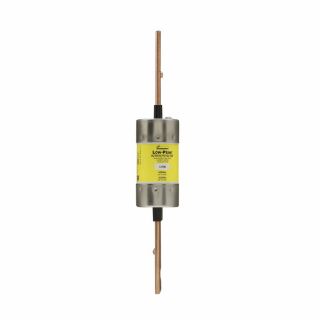

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

LPS-RK-200SP

product.name:

LPS-RK-200SP BSF

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Bussmann

Type

Current Limiting

Alternate Supplier #

Grainger - 4XF82

Description

Bussmann's UL Class RK1 fuse offering includes the industry's most recognized Low-Peak dual-element, current-limiting, time-delay fuses (LPN-RK and LPS-RK) which are also available with optional indication on select ratings (see product data sheet). Complementing the Low-Peak product offering is Bussmann's Limitron family of fast-acting fuses (KTN-R, KTS-R, KWN-R and KWS-R) fuses.

Bussmann Low-Peak™ Fuse, Current Limiting Low Voltage Time Delay, Series: LPS-RK, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 200 A, 600 VAC/300 VDC, 300/100 kAIC Interrupt, Class: RK1, 10 s at 500% Response, Blade End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 1.61 in Dia x 9.63 in L Body Size

Application

For feeders, branch circuits, motors, transformers, solenoids and general purpose circuits, safety and security systems

Standards

CE Certified | CSA 1422-02/File No. 53787 | CSA C22.2 No. 248.12 | UL File No. E4273 | UL Guide JDDZ

Features

Separate overload and short circuit elements provide time delay for close sizing of high inrush loads linked with RK1 current limitation and selective co-ordination ratio of 2:1 prevents widespread blackouts
Time delay permits 130% FLA sizing for back-up motor protection
300 kA rms symmetrical interrupt rating provides adequate ratings without obsolescence for all electrical systems, big or small, allows for simple, worry free installation in virtually any application
Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak™ fuses
Consistent 2:1 ampacity ratios for all Low-Peak™ fuses make selective co-ordination easy
Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents
Protects against 1 ph motor damage
Proper sizing can provide "no damage" type 2 co-ordinated protection for NEMA and IEC motor controllers
Electrically isolated end caps for additional safety

Specifications

Amperage Rating:	200 A
Body Size:	1.61 in Dia x 9.63 in L
Body Type:	Cartridge
Class:	RK1
Country of Origin:	MX
Element:	Dual
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	100/300 kA
Material:	Melamine
Mounting Type:	Holder
Rejection/Non-Rejection:	Rejection
Response Time:	10 s at 500%
Series:	LPS-RK
Terminal Type:	Blade
Voltage Rating:	600 VAC/300 VDC
