LP3M-120B FSG

Name: LP3M-120B FSG
Brand: Federal Signal
SKU: LP3M-120B FSG
Availability: OutOfStock

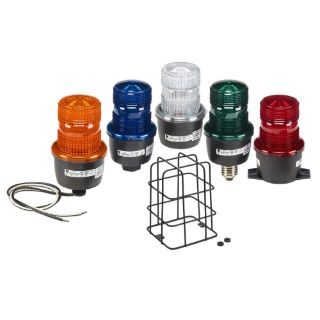

Actual Product May Vary From Image

Product Details

Manufacturer:

Federal Signal

Manufacturer part number:

LP3M-120B

product.name:

LP3M-120B FSG

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Federal Signal

Type

Low Profile

Alternate Supplier #

Grainger - 3TDF6

Description

Federal Signal introduces the model LP3 low profile strobe light. This type 4X strobe is available in five colors amber, blue, clear, green and red. The model LP3M contains a 1/2 in male pipe mount and is available in 12 to 48 VDC, 120 VAC or 240 VAC. The LP3M features a 1/2 male pipe mount and 18 wire leads. An optional dome guard is available for use with the LP3M when installed flush with a panel. All LP3 units feature a unique threaded screw-on lens to provide for tool free wiring and strobe tube replacement. The strobe tube is rated for 7000 hr.

Federal Signal StreamLine® Strobe Light, Low Profile, Series: LP3M, 120 VAC, 0.1 A, Cylindrical, 3-1/8 in Dia, Strobe Tube Lamp, Blue, 80 fpm Flash, 175000 cd, 7000 hr Average Life, Surface Mount, 4X/IP66/IP69K, -31 to 150 deg F, Specifications Met: ARRA Compliant|BAA Compliant|cUL Listed|CSA Certified|CE Certified|UL Listed, Polycarbonate Housing, 3.13 in W x 3.13 in D x 5.82 in H

Application

For indoor/outdoor applications

Standards

cUL Listed | CSA Certified | CE Certified

Features

Screw-on lens provides easy access
PLC and triac compatible

Specifications

Amperage Rating:	0.1 A
Average Life:	7000 hr
Color:	Blue
Country of Origin:	US
Diameter:	3-1/8 in
Dimensions:	3.13 in W x 3.13 in D x 5.82 in H
Flash Rate:	80 fpm
Housing Material:	Polycarbonate
Lamp Type:	Strobe Tube
Light Output:	175000 cd
Mounting Type:	Surface
NEMA Rating:	4X/IP66/IP69K
Series:	LP3M
Shape:	Cylindrical
Specifications Met:	ARRA Compliant\|BAA Compliant\|cUL Listed\|CSA Certified\|CE Certified\|UL Listed
Temperature Rating:	-31 to 150 deg F
Voltage Rating:	120 VAC
