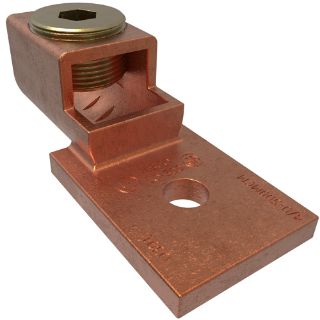

Actual Product May Vary From Image

LO-500 ILS

Name: LO-500 ILS
Brand: Ilsco
SKU: LO-500 ILS
Availability: OutOfStock

ILSCO® ClearChoice® LO-500 1-Conductor Mechanical Lug, 4/0 AWG to 500 kcmil Copper Conductor, 3/8 in Stud, 2 Bolt Holes, Copper

Manufacturer: Ilsco

Manufacturer part number: LO-500

Availability: Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

ILSCO®

Type

1-Conductor

Description

ILSCO® ClearChoice® Mechanical Lug, 1-Conductor, Series: LO Series, Copper Conductor, 4/0 AWG to 500 kcmil Conductor, 3/8 in Stud, 2 Bolt Holes, 1-9/16 in W Tongue, Straight Tongue, 2000 VAC, Specifications: 3/8 in Hex, 90 deg C, Copper, Electrolytic, 3-5/16 in L x 1-1/2 in W Dimensions

Application

For terminating connector

Standards

PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Features

Manufactured from electrolytic seamless copper tubing
Compact design saves space and reduces installation time
Range taking for reduced inventories and flexibility
Re-usable
Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used

Specifications

Conductor Size:	4/0 AWG to 500 kcmil
Conductor Type:	Copper
Country of Origin:	MX
Dimensions:	3-5/16 in L x 1-1/2 in W
Finish:	Electrolytic
Material:	Copper
Number of Bolt Holes:	2
Series:	LO Series
Specifications:	3/8 in Hex
Stud Size:	3/8 in
Temperature Rating:	90 deg C
Tongue Size:	1-9/16 in W
Tongue Type:	Straight
Voltage Rating:	2000 VAC
