LM67000LA-902A1 TKN

Name: LM67000LA-902A1 TKN
Brand: Timken
SKU: LM67000LA-902A1 TKN
Availability: OutOfStock

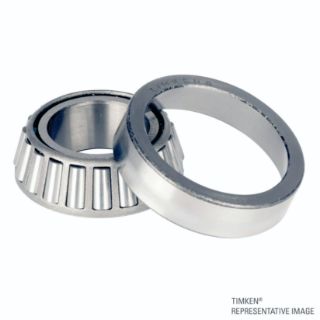

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

LM67000LA-902A1

product.name:

LM67000LA-902A1 TKN

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Timken

Description

Timken®is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With capacity to manage both radial and axial loads, high-performance Timken® tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.

Tapered Roller Bearing Single Row Assembly | Imperial | 31.8 mm 1.3 in Bore | 59.2 mm 2.3 in OD | 35.8 mm 1.4 in Width

Features

Widest choice including both inch and metric sizes
Engineered to deliver higher speeds, heavier loads and longer life
Unrivaled technology and engineering support
Provides a solution for many fixed or floating bearing applications where simplicity of assembly is required

Specifications

Assembly Components:	Assembly
Assembly Number:	902A1
Bearing Material:	Steel
Bearing Type:	Unmounted Tapered Roller Bearing
Bore Type:	Straight Bore
Cage (Retainer) Type:	Steel
Cage Material:	Steel
Closure type:	Duo Face Plus Seals
Component (I/R; O/R assembly):	Assembly
Dynamic Load Rating:	10500
Inner Race Width (in):	0.66
Inner Race Width (mm):	16.764
Load Rating UOM:	LB
Material - Rolling Elements:	Steel
Outer Diameter (in):	1.792
Outer Diameter (mm):	45.5168
Outer Diameter Type:	Straight OD
Overall Width (in):	1.41
Overall Width (mm):	35.814
Precision class:	Class 2 (Standard)
Raceway Style:	Tapered Roller Bearing
Rolling Element:	Tapered Roller
Row Type:	Single
Shaft Size (in):	1.25
Shaft Size (mm):	31.75
Static Load Rating:	10000
