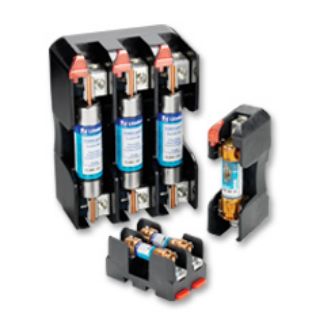

LFR25100-3CID LIT

Name: LFR25100-3CID LIT
Brand: Littelfuse
SKU: LFR25100-3CID LIT
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

LFR25100-3CID

product.name:

LFR25100-3CID LIT

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Littelfuse®

Type

Indicating

Alternate Supplier #

Grainger - 6LVP5

Description

The new Littelfuse® class H and R blocks offer many advantages over previous generations that are noted in the features and benefits section. Class H and class R fuse blocks are dimensionally the same, but class R blocks incorporate A rejection feature, which only allows class R fuses to be inserted.

Littelfuse® POWR-GARD® Fuse Block, Indicating, Series: LFR, 250 VAC, 100 A, 3 Pole, Class: R, Box Lug, 14 to 10 AWG Wire, DIN Rail Mount, 5.874 in Fuse Length, 1.311 in Fuse Dia, 130 deg C, For Use With: FLNR/FLNR_ID, KLNR and LLNRK Series Fuse, Thermoplastic, 7 in L x 4.97 in W x 2.6 in H

Standards

RoHS Compliant | UL Listed | CSA Certified | 94 V-0 Flammability Rating | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.

Features

Universal mounting holes for easy replacement
Only 1-hand is required to release from DIN rail (lock open lock closed)
Reinforced fuse clips are standard on all class H and class R fuse blocks
<0.6 mA at 600 VAC leakage current
200 kA rms symmetrical withstand rating
Clip designs maximize electrical contact and minimize heat rise
DIN rail releasable for all non-knife blade style fuses
Lead (Pb) free
Indication offered on most 250 and 600 VAC versions

Specifications

Amperage Rating:	100 A
Class:	R
Connection Type:	Box Lug
Country of Origin:	CN
Dimensions:	7 in L x 4.97 in W x 2.6 in H
Fuse Diameter:	1.311 in
Fuse Length:	5.874 in
Material:	Thermoplastic
Mounting Type:	DIN Rail
Number of Poles:	3
Series:	LFR
Suitable For Use With:	FLNR/FLNR_ID, KLNR and LLNRK Series Fuse
Temperature Rating:	130 deg C
Voltage Rating:	250 VAC
Wire Size:	14 to 10 AWG
