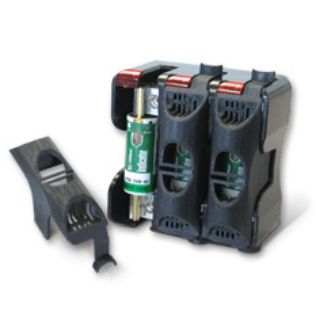

Actual Product May Vary From Image

LFH25100FBC LIT

Name: LFH25100FBC LIT
Brand: Littelfuse
SKU: LFH25100FBC LIT
Availability: OutOfStock

Littelfuse® LFH25100FBC LF Series Fuse Block Cover, 100 A, 250 VAC, For Use With POWR-GARD® LFH25100/LFR25100 Class H/R Fuse Block, Thermoplastic, Black

Manufacturer: Littelfuse

Manufacturer part number: LFH25100FBC

Availability: Expected Leadtime 6 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Littelfuse®

Description

Littelfuse® fuse block covers protect personnel from accidentally coming into contact with energized parts. Covers are for use with Littelfuse® UL class fuse blocks.

Littelfuse® Fuse Block Cover, Series: LF Series, 100 A, 250 VAC, For Use With: POWR-GARD® LFH25100/LFR25100 Class H/R Fuse Block, 7.301 in Length, 1.53 in Width, Thermoplastic, Black

Standards

UL File No. E184929 | CSA File No. 007316_0_000 Class 6225-01 | CSA Recognized | UL 94-V-0 Flammability Rating | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

Added safety to personnel
Ventilated to avoid fuse derating
Reusable and cost effective
Convenient snap-on feature
Allows visibility of indicator fuse block light
Universal mounting holes

Specifications

Amperage Rating:	100 A
Color:	Black
Country of Origin:	CN
Length:	7.301 in
Material:	Thermoplastic
Series:	LF Series
Suitable For Use With:	POWR-GARD® LFH25100/LFR25100 Class H/R Fuse Block
Voltage Rating:	250 VAC
Width:	1.53 in
