LCAS4-14-L PAN

Name: LCAS4-14-L PAN
SKU: LCAS4-14-L PAN
Availability: OutOfStock

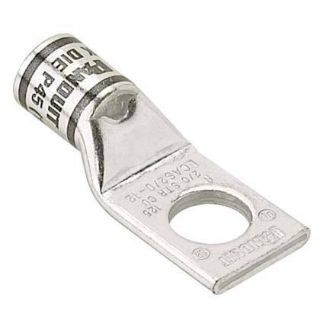

Actual Product May Vary From Image

Product Details

Manufacturer part number:

LCAS4-14-L

product.name:

LCAS4-14-L PAN

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

This product has a minimum quantity of 50

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit® Pan-Lug™ compression connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability and lowest installed cost. Panduit® offers the first and only copper compression lugs and splices that meet network equipment building systems (NEBS) level 3 requirements as tested by Telcordia Technologies. NEBS level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment. Panduit® Pan-Lug™ compression connectors are designed for use with many different code and flex conductor types and are available in a broad range of styles and sizes including copper 1-hole, 2-hole and blank tongue lugs and splices; aluminum 1-hole and 2-hole lugs and splices and copper in-line reducing splices. Panduit® offers a wide assortment of Pan-Lug™ Power connectors to meet customer needs and today's application requirements.

Panduit® Pan-Lug™ Lug Compression Connector, 1-Hole Type LCAS, Series: LCAS, Stranded Copper Conductor, 4 AWG Conductor, Die Code: P29, 35 kV, 1/4 in Stud, Straight Tongue, 0.55 in W x 0.09 in THK Tongue, 1.35 in Overall Length, Short Barrel, 0.28 in ID x 0.38 in OD x 0.53 in L Barrel, 5/8 in L Wire Strip, 90 deg C, 0.27 in Mounting Hole, Tin Plated Copper, Gray

Application

Power and Grounding Applications

Standards

Features

Short barrel for limited space applications
Color coded bands for proper die selection and crimp placement
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Specifications

Barrel Size:	0.28 in ID x 0.38 in OD x 0.53 in L
Barrel Type:	Short
Color:	Gray
Conductor Size:	4 AWG
Conductor Type:	Copper/Stranded
Country of Origin:	MX
Die Code:	P29
Material:	Tin Plated Copper
Mounting Hole Size:	0.27 in
Overall Length:	1.35 in
Series:	LCAS
Specifications:	5/8 in L Wire Strip
Stud Size:	1/4 in
Temperature Rating:	90 deg C
Tongue Size:	0.55 in W x 0.09 in THK
Tongue Type:	Straight
Voltage Rating:	35 kVAC
