LCAS250-12-X PAN

Name: LCAS250-12-X PAN
SKU: LCAS250-12-X PAN
Availability: OutOfStock

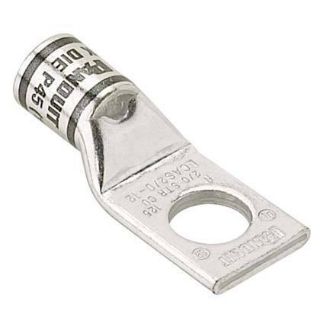

Actual Product May Vary From Image

Product Details

Manufacturer part number:

LCAS250-12-X

product.name:

LCAS250-12-X PAN

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

This product has a minimum quantity of 10

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit® Pan-Lug™ Compression Connector Lug, 1-Hole Type LCAS, Code Copper Conductor, 250 kcmil Conductor, Die Code: P62, 35 kV, 1/2 in Stud, Straight Tongue, 1.17 in W x 0.14 in THK Tongue, 2.56 in Overall Length, Short Barrel, 0.63 in ID x 0.77 in OD x 1.03 in L Barrel, 28.6 mm L Wire Strip, 90 deg C, 0.53 in Mounting Hole, Tin Plated Copper, Yellow

Application

For use with stranded copper conductors

Standards

Features

Short barrel for limited space applications
Color coded bands for proper die selection and crimp placement
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Specifications

Barrel Size:	0.63 in ID x 0.77 in OD x 1.03 in L
Barrel Type:	Short
Color:	Yellow
Conductor Size:	250 kcmil
Conductor Type:	Code Copper
Country of Origin:	MX
Die Code:	P62
Material:	Tin Plated Copper
Mounting Hole Size:	0.53 in
Overall Length:	2.56 in
Series:	LCAS
Specifications:	1-1/8 in L Wire Strip
Stud Size:	1/2 in
Temperature Rating:	90 deg C
Tongue Size:	1.17 in W x 0.14 in THK
Tongue Type:	Straight
Voltage Rating:	35 kVAC
