LCAS2-38-Q PAN

Name: LCAS2-38-Q PAN
SKU: LCAS2-38-Q PAN
Availability: OutOfStock

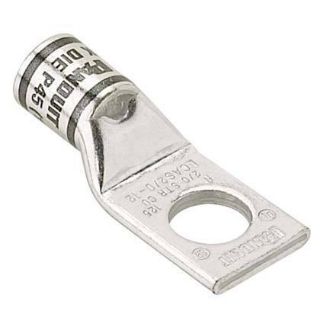

Actual Product May Vary From Image

Product Details

Manufacturer part number:

LCAS2-38-Q

product.name:

LCAS2-38-Q PAN

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

This product has a minimum quantity of 25

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit® Pan-Lug™ Compression Lug, 1-Hole, Series: LCAS, Copper Stranded Conductor, 2 AWG Conductor, Die Code: P33, 35 kVAC, 42.95 in Stud, Straight Tongue, 0.66 in W x 0.1 in THK Tongue, 1.66 in Overall Length, Short/Inspection Window Barrel, 0.31 in ID x 0.42 in OD x 0.57 in L Barrel, Specifications: 5/8 in L Wire Strip, Tin Plated Finish, 90 deg C, 42.952 in Mounting Hole, Copper, Brown

Application

For use to provide permanent terminations for a variety of power and grounding applications

Standards

Features

Short barrel for limited space applications
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion

Specifications

Barrel Size:	0.31 in ID x 0.42 in OD x 0.57 in L
Barrel Type:	Short
Color:	Brown
Conductor Size:	2 AWG
Conductor Type:	Code Copper
Country of Origin:	MX
Die Code:	P33
Material:	Copper
Mounting Hole Size:	0.41 in
Overall Length:	1.66 in
Series:	LCAS
Specifications:	15.9 mm L Wire Strip
Stud Size:	3/8 in
Temperature Rating:	90 deg C
Tongue Size:	0.66 in W x 0.1 in THK
Tongue Type:	Straight
Voltage Rating:	35 kV
