LAMA500-38-6Y PAN

Name: LAMA500-38-6Y PAN
SKU: LAMA500-38-6Y PAN
Availability: OutOfStock

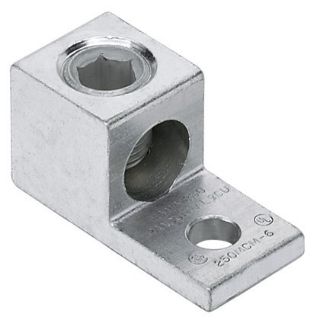

Actual Product May Vary From Image

Product Details

Manufacturer part number:

LAMA500-38-6Y

product.name:

LAMA500-38-6Y PAN

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

1-Barrel

Description

Panduit® Pan-Lug™ Mechanical Connector Lug, 1-Barrel, Series: LAMA, Aluminum/Copper/Stranded Conductor, 4 AWG to 500 kcmil Conductor, 3/8 in Stud, 1 Bolt Holes, 1.59 in L x 1.5 in W x 0.33 in THK Tongue, Straight Tongue, 600 VAC, Specifications: 1/2 in Hex, 1 Conductor, 1.22 in L Wire Strip, 90 deg C, Aluminum, Tin Plated, 2.84 in L x 1.5 in W x 1.58 in H Dimensions

Application

For stranded aluminum or copper code conductors

Standards

Features

Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
Tin plated to inhibit corrosion
Compact design saves space
Wide wire range taking capability minimizes inventory requirements
Inspection window to visually assure full conductor insertion
Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector

Specifications

Conductor Size:	4 AWG to 500 kcmil
Conductor Type:	Aluminum/Copper/Stranded
Country of Origin:	IN
Dimensions:	2.81 in L x 1.56 in H
Finish:	TiN Coated
Material:	Aluminum
Number of Bolt Holes:	1
Series:	LAMA
Specifications:	1.22 in L Wire Strip
Stud Size:	3/8 in
Temperature Rating:	90 deg C
Tongue Size:	1.59 in L x 1.5 in W x 0.31 in THK
Tongue Type:	Straight
Voltage Rating:	600 VAC
