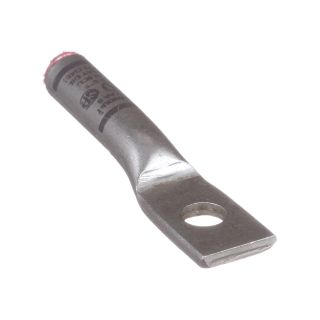

LAA6-14-X PAN

Name: LAA6-14-X PAN
SKU: LAA6-14-X PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer part number:

LAA6-14-X

product.name:

LAA6-14-X PAN

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

1-Hole Dual Rated

Description

Panduit® Pan-Lug™ compression connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability and lowest installed cost. Panduit® offers the first and only copper compression lugs and splices that meet network equipment building systems (NEBS) level 3 requirements as tested by Telcordia Technologies. NEBS level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment. Panduit® Pan-Lug™ compression connectors are designed for use with many different code and flex conductor types and are available in a broad range of styles and sizes including copper 1-hole, 2-hole and blank tongue lugs and splices; aluminum 1-hole and 2-hole lugs and splices and copper in-line reducing splices. Panduit® offers a wide assortment of Pan-Lug™ Power connectors to meet customer needs and today's application requirements.

Panduit® Pan-Lug™ Compression Lug, 1-Hole Dual Rated, Series: LLA, Stranded Aluminum/Copper Conductor, 6 AWG Conductor, Die Code: P29, 35 kV, 1/4 in Stud, Straight Tongue, 0.88 in L x 0.55 in W x 0.11 in THK Tongue, 2.2 in Overall Length, Long/Standard Barrel, 0.2 in ID x 0.34 in OD x 0.86 in L Barrel, Specifications: 1 in L Wire Strip, Tin Plated Finish, 90 deg C, 1 in Mounting Hole, Aluminum, Gray

Standards

Features

Tin-plated to inhibit corrosion
Color-coded end plug and Panduit® and specified competitor die index numbers marked on barrel for proper crimp die selection
Manufactured from high conductivity thick wall wrought aluminum
Factory pre-filled with joint compound and sealed with easy pull out end plug to inhibit corrosion
Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
For use with stranded aluminum or copper code conductors
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Specifications

Barrel Size:	0.2 in ID x 0.34 in OD x 0.86 in L
Barrel Type:	Long/Standard
Color:	Gray
Conductor Size:	6 AWG
Conductor Type:	Stranded Aluminum/Copper
Die Code:	P29
Material:	Aluminum
Mounting Hole Size:	1 in
Overall Length:	2.2 in
Series:	LLA
Specifications:	1 in L Wire Strip, Tin Plated Finish
Stud Size:	1/4 in
Temperature Rating:	90 deg C
Tongue Size:	0.88 in L x 0.55 in W x 0.11 in THK
Tongue Type:	Straight
Voltage Rating:	35 kV
