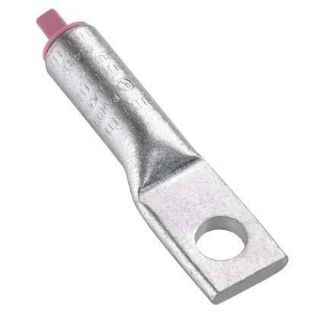

Actual Product May Vary From Image

LAA4/0-38-5 PAN

Name: LAA4/0-38-5 PAN
SKU: LAA4/0-38-5 PAN
Availability: OutOfStock

Panduit® Pan-Lug™ LAA4/0-38-5 1-Hole Type LAA Compression Connector Lug, 4/0 AWG Code Aluminum/Copper Conductor, Die Code: P66, 3/8 in Stud, Tin Plated Aluminum

Manufacturer part number: LAA4/0-38-5

Availability: Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Panduit®

Type

1-Hole

Description

Panduit® Pan-Lug™ Compression Connector Lug, 1-Hole Type LAA, Code Aluminum/Copper Conductor, 4/0 AWG Conductor, Die Code: P66, 35 kV, 3/8 in Stud, Straight Tongue, 1.31 in L x 1.03 in W x 0.27 in THK Tongue, 3.56 in Overall Length, Long/Standard Barrel, 0.55 in ID x 0.88 in OD x 1.5 in L Barrel, 44.5 mm L Wire Strip, 90 deg C, 0.41 in Mounting Hole, Tin Plated Aluminum, White

Application

For use with stranded aluminum or copper code conductors

Standards

Features

Manufactured from high conductivity thick wall wrought aluminum
Factory pre-filled with joint compound and sealed with easy pull out end plug to inhibit corrosion
Color coded end plug and Panduit® and specified competitor die index numbers marked on barrel for proper crimp die selection
Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
Tin plated to inhibit corrosion
Dual rated, pre-filled joint compound
Connector barrel pre-filled with oxide inhibiting joint compound

Includes

Connector Barrel

Specifications

Barrel Size:	0.55 in ID x 0.88 in OD x 1.5 in L
Barrel Type:	Long/Standard
Color:	White
Conductor Size:	4/0 AWG
Conductor Type:	Aluminum/Copper
Die Code:	P66
Material:	Aluminum
Mounting Hole Size:	0.41 in
Overall Length:	3.56 in
Series:	LLA
Specifications:	1-3/4 in L Wire Strip, Tin Plated Finish
Stud Size:	3/8 in
Temperature Rating:	90 deg C
Tongue Size:	1.31 in L x 1.03 in W x 0.27 in THK
Tongue Type:	Straight
Voltage Rating:	35 kV
