L60030M-1C LIT

Name: L60030M-1C LIT
Brand: Littelfuse
SKU: L60030M-1C LIT
Availability: OutOfStock

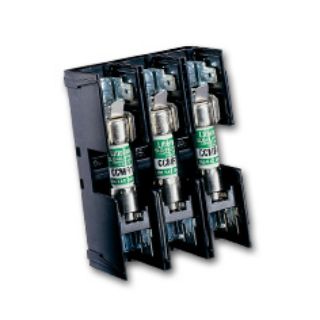

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

L60030M-1C

product.name:

L60030M-1C LIT

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Littelfuse®

Type

Gangable

Description

The Littelfuse® Class CC, CD and midget blocks offer generous space savings and enhanced value. DIN rail mounting and universal mounting holes are available as well as an indication feature on all Class CD fuse blocks.

Littelfuse® POWR-GARD® Midget Fuse Block, Gangable, Series: L600M, 600 VAC/VDC, 30 A, 1 Pole, Class: CC, Box Lug Connection, 14 to 6 AWG Wire, DIN Rail Mounting, 38 mm Fuse Length, 10 mm Diameter Fuse, 125 deg C, For Use With: BLF, BLN, BLS, FLA, FLM, FLQ, FLU, KLK, KLKD, KLQ Series Fuse, Thermoplastic, 0.783 in W x 1.25 in D x 3 in H Dimensions

Standards

UL File No. E14721 | CSA File No. LR7316 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

Midget fuse blocks are molded of high-strength, high temperature material to minimize block breakage during handling and installation, as well as damage due to heat
Space saving design
Universal mounting holes for easy replacement
One hand release from DIN rail optional
Rejection feature that prevents the insertion of fuses with lower interrupting rating or voltage ratings
Clip design reduces resistance and heat
1200 V minimum dielectric strength
Tin plated copper alloy clip/terminals, copper box lug, zinc plated steel pressure plate
Non-DIN rail fuse blocks have interlocking feature allowing ganging for any number of poles
Interlocking fuse blocks allow ganging to produce a fuse block with any number of poles

Specifications

Amperage Rating:	30 A
Class:	CC
Connection Type:	Box Lug
Country of Origin:	CN
Dimensions:	0.783 in W x 1.25 in D x 3 in H
Fuse Diameter:	10 mm
Fuse Length:	38 mm
Material:	Thermoplastic
Mounting Type:	DIN Rail
Number of Poles:	1
Series:	L600M
Suitable For Use With:	BLF, BLN, BLS, FLA, FLM, FLQ, FLU, KLK, KLKD, KLQ Series Fuse
Temperature Rating:	125 deg C
Voltage Rating:	600 VAC/VDC
Wire Size:	14 to 6 AWG
