L50S100 LIT

Name: L50S100 LIT
Brand: Littelfuse
SKU: L50S100 LIT
Availability: OutOfStock

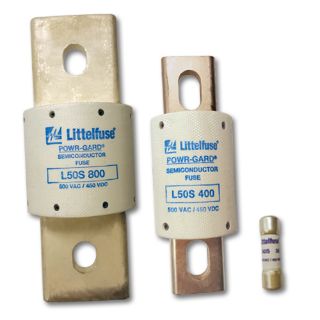

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

L50S100

product.name:

L50S100 LIT

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Littelfuse®

Type

Very Fast Acting High Speed

Description

Littelfuse® L50S series high speed fuses are designed to protect today's equipment and systems and are manufactured with Littelfuse® developed technology that sets tomorrows standards for accuracy, consistent quality, reliability and predictable performance. Littelfuse® engineers have redefined high speed fuse technology by using advanced metallurgical, polymer and materials research, mathematical modeling and computerized statistical analysis.

Littelfuse® POWR-GARD® Semiconductor Fuse, Very Fast Acting High Speed, Series: L50S, Indicating, 100 A, 500 VAC/450 VDC, 200/20 kA Interrupt, Blade Terminal, Bolt Mounting, Traditional/Round Body, Fiberglass, 1 in Dia x 3-5/8 in L Body

Application

AC and DC Drives, DC Common Bus Protection, Power Converters, UPS and Soft-Starter Applications

Standards

UL File No. E71611 | CSA File No. LR29862 | CE Certified | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

Extremely current-limiting
Low watts loss
Controlled transient over voltages

Specifications

Amperage Rating:	100 A
Body Size:	1 in Dia x 3-5/8 in L
Body Type:	Traditional/Round
Country of Origin:	MX
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	200/20 kA
Material:	Fiberglass
Mounting Type:	Bolt
Series:	L50S
Terminal Type:	Blade
Voltage Rating:	500 VAC/450 VDC
