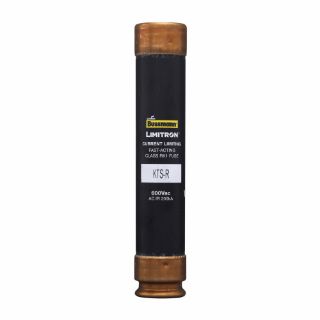

KTS-R-60 BSF

Name: KTS-R-60 BSF
Brand: Bussmann
SKU: KTS-R-60 BSF
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

KTS-R-60

product.name:

KTS-R-60 BSF

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 14 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Bussmann

Type

Current Limiting Fast Acting Low Voltage

Description

Bussmann's UL Class RK1 fuse offering includes the industry's most recognized Low-Peak dual-element, current-limiting, time-delay fuses (LPN-RK and LPS-RK) which are also available with optional indication on select ratings (see product data sheet). Complementing the Low-Peak product offering is Bussmann's Limitron family of fast-acting fuses (KTN-R, KTS-R, KWN-R and KWS-R) fuses.

Bussmann Limitron™ Fuse, Current Limiting Fast Acting Low Voltage, Series: KTS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 60 A, 600 V, 200 kAIC Interrupt, Class: RK1, Ferrule End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine Glass Tube, 1.06 in Dia x 5.5 in L Body Size

Application

For circuits and loads with no heavy surge currents of motors, transformers, solenoids, welders, panel boards, industrial, commercial applications, safety and security systems

Standards

CE Certified | CSA 1422-02 | CSA 53787 | CSA C22.2 No. 248.12 | NEC Section 110.9 | UL E4273 | UL Guide JDDZ

Features

Current limitation for non-inductive circuits provides class RK1 current limiting response to maximum ground fault and short circuit conditions
200 kA interrupt rating provides high ratings at all circuit locations
Economical solutions for high fault circuits
70/30 brass end cap
Melamine tube with silver fuse element

Specifications

Amperage Rating:	60 A
Body Size:	1.06 in Dia x 5.5 in L
Body Type:	Cartridge
Class:	RK1
Country of Origin:	MX
Element:	Single
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kAIC
Material:	Melamine Glass
Mounting Type:	Holder
Rejection/Non-Rejection:	Rejection
Series:	KTS-R
Terminal Type:	Ferrule
Voltage Rating:	600 V
