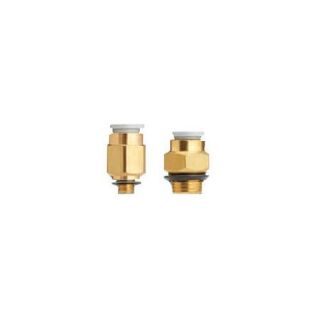

KQ2H10-U02A SMC

Name: KQ2H10-U02A SMC
Brand: SMC
SKU: KQ2H10-U02A SMC
Availability: InStock

product.productdetails.imagedisclaimer

product.productdetails

products.manufacturer:

SMC

products.manufacturerpartnumber:

KQ2H10-U02A

products.availability.cbtinventory

products.availability.vendorinventory

common.loading

CBT - CINCINNATI

CBT - SPRINGBORO

CBT - SIDNEY

CBT - LEXINGTON

CBT - LOUISVILLE

products.availability:

products.availability.instockwithquantity

products.availability.disclaimer

products.callforprice

product.description

Brand Name

SMC®

Type

Metric Size with Gasket

Description

SMC®, KQ2H10-U02A, One-Touch Fittings, Metric Size with Gasket, Series: KQ2, Fitting/Connector: Connector, 10 mm x Uni-1/4 Nominal, Push-In End Style, 17 mm Hex, 23.7 mm Length, -100 kPa to 1 MPa Pressure, -5 to 60 deg C Air, 0 to 40 deg C Water Operating, Brass, White/Light Gray

Application

For use in potable water systems

Standards

RoHS Compliant

Features

Accepts FEP, PFA, nylon, soft nylon, and polyurethane tubes
Operating pressure range, -100kPa to 1MPa
Release collar allows easy removal of tubing without causing damage to the tube
This product is not intended for use in potable water systems

Specifications

Color:	White/Light Gray
Country of Origin:	JP
End Style:	Push-In
Fitting/Connector Type:	Connector
Hex Size:	17 mm
Length:	23.7 mm
Material:	Brass
Nominal Size:	10 mm x Uni-1/4
Pressure Rating:	-100 kPa to 1 MPa
Series:	KQ2
Temperature Rating:	-5 to 60 deg C Air, 0 to 40 deg C Water Operating
