KLKD008 LIT

Name: KLKD008 LIT
Brand: Littelfuse
SKU: KLKD008 LIT
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

KLKD008

product.name:

KLKD008 LIT

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Littelfuse®

Type

Fast Acting

Description

For over 85 years Littelfuse® has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse® we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO or construction, we are committed to being your circuit protection partner and appreciate your business.

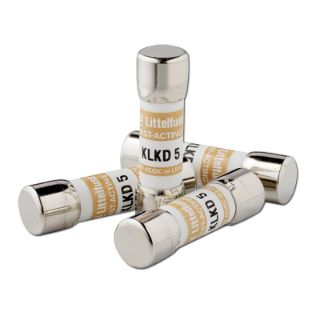

Littelfuse® POWR-GARD® Supplemental Midget Fuse, Fast Acting, Series: KLKD, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 8 A, 600 VAC/VDC, 100 kA Interrupt, 12 s Response, Ferrule Terminal, Clip Mount, Cylindrical Body, Single Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size

Application

Supplementary Protection of Control Circuit, Street Lighting, Computer, DC Circuit, Solenoid, Small Motor, Transformer and Power Supply Applications

Standards

UL E339112/E10480 | CSA LR29862 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

5AG size fuse
5 sec minimum delay for fuses rated at 3 A or less and 12 sec for fuses rated more than 3 A at 200% fuse rating
Nickel plated copper alloy caps
High speed, north American style, cartridge lead
High DC rated fuse

Specifications

Amperage Rating:	8 A
Body Size:	13/32 in Dia x 1-1/2 in L
Body Type:	Cylindrical
Country of Origin:	MX
Element:	Single
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	100 kA
Material:	Melamine
Mounting Type:	Clip
Rejection/Non-Rejection:	Non-Rejection
Response Time:	12 s
Series:	KLKD
Terminal Type:	Ferrule
Voltage Rating:	600 VAC/VDC
