JN418-212-C PAN

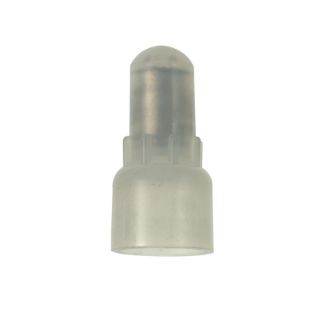

Picture of JN418-212-C PAN
Actual Product May Vary From Image

Product Details

Manufacturer part number:
JN418-212-C
product.name:
JN418-212-C PAN
Availability:
Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit®

Type

Insulated

Description

Panduit® Pan-Term® Wire Joint, Insulated, Series: JN Series, 600 VAC, 18 to 12 AWG Wire, 0.93 in Length, 1/2 in Wire Strip Length, 221 deg F, For Use With: CT-100A, CT-1550, CT-1551 and CT-2500 Crimping Tool, Specifications: 0.4 in Dia Maximum Insulation, 221 deg F, Brass, Clear, Tin Plated, 0.17 in ID x 0.29 in OD Dimensions

Standards

ABS Approved | ARRA Compliant | Buy American Act Compliant | CSA C22.2 File No. 65 | CSA File No. LR31212 | RoHS Compliant | UL File No. 486C | UL File No. 587H | UL File No. E52164 | UL94 V-2 HB Flammability Rated

Features

  • Large barrel, designed to accommodate from 1 to 7 wires with just one crimp
  • Accommodates multiple wire sizes in varying combinations
  • Barrel of terminal internally beveled to provide quick and easy wire insertion

Specifications

Color:Clear
Country of Origin:MX
Dimensions:0.17 in ID x 0.29 in OD
Finish:TiN Coated
Length:0.93 in
Material:Brass
Series:JN Series
Specifications:0.4 in Dia Maximum Insulation, 221 deg F
Suitable For Use With:CT-100A, CT-1550, CT-1551 and CT-2500 Crimping Tool
Temperature Rating:221 deg F
Voltage Rating:600 VAC
Wire Size:18 to 12 AWG
Wire Strip Length:1/2 in
