HS12F5AS SHD

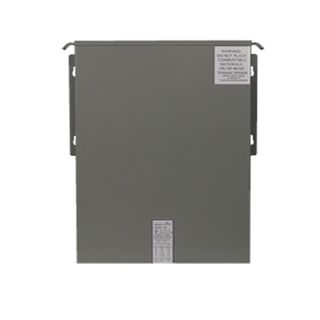

Picture of HS12F5AS SHD
Actual Product May Vary From Image

Product Details

Manufacturer:
SolaHD (Emerson)
Manufacturer part number:
HS12F5AS
product.name:
HS12F5AS SHD
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

SolaHD

Type

Automation Transformers - Non-Ventilated 50 VA to 45 kVA

Description

Non-Ventilated Automation Transformer, 5 KVA, Primary Amps: 18.0@ 277 V, Secondary Amps: 41.6/20.8, Primary Volts: 120/208/240/277, Volts Secondary: 120/240, Frequency: 60 HZ, Single Phase

Application

SolaHD encapsulated transformer rated for harsh industrial environments

Standards

cULus Listed: E25872, E77014, UL 1561 or UL 506, CSA C22.2 No. 47 or No. 66

Features

UL Listed/NEMA Type 3R encapsulated enclosure for indoor and outdoor service; Electrostatically shielded for quality power on sizes 1 kVA and larger; Copper lead wire terminations; .500 - 45 kVA units are capsulated with electrical grade silica and epoxy for industrial applications. Rolled steel enclosure.

Specifications

Country of Origin:US
Enclosure:NEMA 3R, Class 1 Div 2 Group A,B,C and D
Frequency Rating:60 Hz
Height:17 in
Input Voltage:120/208/240/277 Volt Primary VAC
KVA Rating:5
Length:7 in
Maximum Input Current:10.8 A
Maximum Output Current:12.5/25 A
Number of Phases:1
Output Voltage:120/240 Volt Secondary
Temperature Rating:115 DEG C Temperature Rise Under Full Load
Wattage:3 kW
Width:10 in
