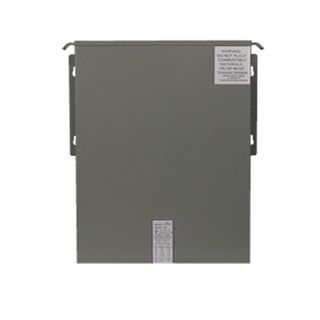

HS12F3AS SHD

Name: HS12F3AS SHD
Brand: SolaHD (Emerson)
SKU: HS12F3AS SHD
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

SolaHD (Emerson)

Manufacturer part number:

HS12F3AS

product.name:

HS12F3AS SHD

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

SolaHD

Type

Automation Transformers - Non-Ventilated 50 VA to 45 kVA

Description

Non-Ventilated Automation Transformer, 3 KVA, Primary Amps: 10.8 @ 277 V, Secondary Amps: 25.0/12.5, Primary Volts: 120/208/240/277, Volts Secondary: 120/240, Frequency: 60 HZ, Single Phase

Application

SolaHD encapsulated transformer rated for harsh industrial environments

Standards

cULus Listed: E25872, E77014, UL 1561 or UL 506, CSA C22.2 No. 47 or No. 66

Features

UL Listed/NEMA Type 3R encapsulated enclosure for indoor and outdoor service; Electrostatically shielded for quality power on sizes 1 kVA and larger; Copper lead wire terminations; .500 - 45 kVA units are capsulated with electrical grade silica and epoxy for industrial applications. Rolled steel enclosure.

Specifications

Country of Origin:	US
Enclosure:	NEMA 3R, Class 1 Div 2 Group A,B,C and D
Frequency Rating:	60 Hz
Height:	12 in
Input Voltage:	120/208/240/277 Volt Primary VAC
KVA Rating:	3
Length:	7 in
Maximum Input Current:	7.2 A
Maximum Output Current:	16.7/8.33 AMP
Number of Phases:	1
Output Voltage:	120/240 Volt Secondary
Temperature Rating:	115 DEG C Temperature Rise Under Full Load
Wattage:	2,000 W
Width:	10 in

Resources

Spec Sheet Warranty
