HOBART QMC10J200SM QM

Name: HOBART QMC10J200SM QM
Brand: Timken
SKU: HOBART QMC10J200SM QM
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

QMC10J200SM

product.name:

HOBART QMC10J200SM QM

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Timken

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.

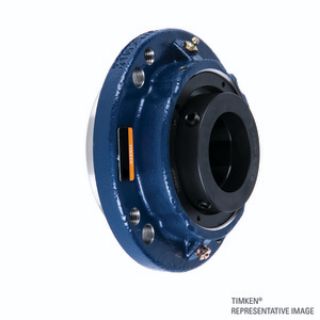

Mounted Spherical Roller Bearing Housed Unit | 50.8 mm 2 in Bore | Eccentric lock

Features

Eccentric Locking - EC Series - A reduced eccentric offset results in more mechanical advantage. This series provides a secure lock that should not release from a properly prepared shaft even in reversing applications. M Seal - Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications. It is chemical and corrosion resistant and provides excellent lubrication retention. It also allows excess grease to purge from the bearing cavity.

Specifications

Adapter Sleeve:	No
Bearing Material:	Steel
Bearing Type:	Mounted Roller Bearing
Bolt Center - in:	3.8
Bolt Center - mm:	96.5
Bolt Circle Diameter - in:	5.38
Bolt Circle Diameter - mm:	136.7
Bolt Size - in:	0.4375
Bolt Size - mm:	10
Bore Size (ID) - in:	2
Bore Size (ID) - mm:	50.8
Bore Type:	Cylindrical
Cage Retainer Material:	Steel
Component (I/R; O/R assembly):	Assembly
Duty Type:	Heavy Duty
Dynamic Load Rating:	26300
End Type:	Open
Expansion Type:	non-expansion (fixed)
Flange Outside Diameter - Inch:	6.38
Flange Outside Diameter - Millimeter:	162.1
Flange Thickness - Inch:	0.63
Flange Thickness - Millimeter:	16
Housing Configuration:	Piloted Flange
Housing Material:	Cast Steel
Housing Outside Diameter - in:	6.38
Housing Outside Diameter - mm:	162.1
Housing Style:	Piloted Flange
Length Through Bore - in:	2.87
Length Through Bore - mm:	72.9
Load Rating UOM:	LBS
Locking Type:	Eccentric lock
Manufacturer Product Page Link:	https://www.timken.com/products/timken-engineered-bearings/housed-units/solid-block-spherical-roller-bearing/
Material - Rolling Elements (Ball or Roller):	Steel
Material Insert Bearing:	Steel
Mounting Type:	Flange: piloted
Nominal Bolt Center to Center - Inch:	5.38
Nominal Bolt Center to Center - Millimeter:	136.7
Number of Mounting Holes:	4
Outer Diameter Type:	Cylindrical
Overall Width - in:	3.05
Overall Width - mm:	77.5
Pilot Diameter - in:	4.5
Pilot Diameter - mm:	114.3
Relubricatable:	Yes
Retainer Type:	Steel
Rolling Element:	Spherical
Row Type:	Double Row
Self Aligning:	Yes
Static Load Rating:	26600
