HK1512-B INA

Name: HK1512-B INA
Brand: INA
SKU: HK1512-B INA
Availability: OutOfStock

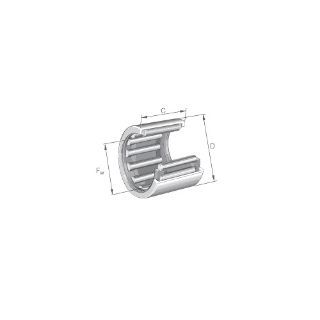

INA HK1512 HK Series Drawn Cup Needle Roller Bearing With Open End, 15 mm Dia Bore, 21 mm OD, 1 Row, 12 mm W, 7900 N Dynamic/9400 N Static/1150 N Fatigue Load

Manufacturer: INA

Manufacturer part number: HK1512

Availability: Expected Leadtime 5 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

INA

Description

INA Drawn Cup Needle Roller Bearing, Series: HK Series, 15 mm Bore Dia, 21 mm Outside Dia, 1 Row, 12 mm W, Open Closure, 7900 N Dynamic/9400 N Static/1150 N Fatigue, Steel Cage, 16300 rpm Maximum, 140 deg C

Standards

Meets to DIN 618-1/ISO 3245

Features

Deep drawn shell design for maximum capacity in the minimum radial space
Cage guided needle rollers for low friction, whole roller loading and high speeds
Open for through shaft locations to improve sealing
Easily mounted without snap rings or shoulders

Specifications

Bore Diameter:	15 mm
Cage Material:	Steel
Closure Type:	Open
Load Capacity:	7900 N Dynamic/9400 N Static/1150 N Fatigue
Maximum Speed:	16300 rpm
Number of Rows:	1
Outside Diameter:	21 mm
Series:	HK Series
Temperature Rating:	140 deg C
Width:	12 mm
