Actual Product May Vary From Image

HF0924414 HOF

Name: HF0924414 HOF
Brand: nVent HOFFMAN
SKU: HF0924414 HOF
Availability: InStock

IP54 9 in FF 24V 7035

Manufacturer: nVent HOFFMAN

Manufacturer part number: HF0924414

Availability: 9 in stock

Estimated dates are contingent upon manufacturer stock.

Price on Request

Qty:

Product Details

nVent HOFFMAN

Fans and Filter Fans

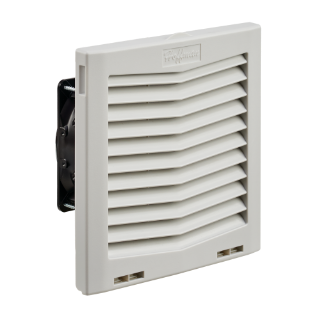

HF09 Side-Mount Filter Fan, 24V 70CFM, Lt Gray

Controls and Drives; Power Distribution

Airflow (Imperial):	70 ft³/min
Airflow (Metric):	119 m³/h
Ambient Temperature:	-4 to 149 deg F
Amperage Rating:	0.35 A
Color:	Light Gray
Color Code:	RAL 7035
Country of Origin:	CN
Depth (Imperial):	4.15 in
Depth (Metric):	105 mm
Finish:	Smooth Matte
Flow Rate:	70 CFM
Height (Imperial):	8.19 in
Height (Metric):	208 mm
Housing Material:	Non-metallic
Material:	Plastic
Max Current:	0.35 A
Nominal Voltage:	24 V
Operating Temperature (Imperial):	-4-149 °F
Operating Temperature (Metric):	-20-65 °C
Size:	8.19 x 8.21 x 4.15 in
Voltage DC:	24-24 V
Voltage Rating:	24 VDC
Weight (Imperial):	2.7 lb
Weight (Metric):	1 kg
Width (Imperial):	8.21 in
Width (Metric):	209 mm
