HBL420R7W HWD

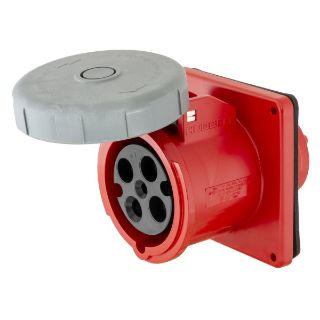

Name: HBL420R7W HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL420R7W HWD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL420R7W

product.name:

HBL420R7W HWD

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Female Grounding Heavy Duty Standard Single Flanged Watertight

Alternate Supplier #

Grainger - 6C126

Description

The IEC line of plugs and connectors are made with a rugged super tough, one piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy duty, external cord grip provides superior strain relief on the conductors. Hubbell® horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognizes as an approved disconnecting/line of sight disconnecting means.

Wiring Device-Kellems HBL® Pin and Sleeve Receptacle, 3-Phase Flanged Grounding Non-NEMA Single Standard Watertight Screw Mount, 480 VAC, 20 A, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Red, 3-3/4 in L x 3-3/4 in W

Application

High Ampacity Watertight Connection Applications

Standards

RoHS Compliant | CSA C22.2 File No. 182.1 | IEC 309-1/309-2 | UL 498 | UL 1682 | UL File No. E146032

Features

14 to 10 AWG copper wire size
Mounting flange, stainless steel (17-1 type) arm spring, Rynite SST35 cover and arm, nickel plated brass cover screw/rivet
Stainless steel (300 series) mounting screws, terminal screws, assembly screws, pin/sleeve spring
High impact thermoset contact carrier and retainer
Solid neoprene gaskets
Rynite SST35 cover arm
Polycarbonate rotating sealing disc, brass ground/phase sleeve
Dielectric withstand voltage of 3000 VAC minimum
600 Vrms maximum working voltage
Certified for current interrupting at full rated current
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL 498 temperature rise
5000 connect and disconnect cycles with load for 16/20 A, 1000 cycles with load and 1000 cycles without load for 30/32/60/63 A and 250 cycles with load and 250 cycles without load for 100/125 A endurance
Terminals identified in accordance with North American and IEC conventions terminal identification
Identification and ratings are a permanent part of the device housing
Every Hubbell® non-metallic pin and sleeve product is designed to meet the international standard IEC 60309-1 and IEC 60309-2
Device standard calls out singly rated, non-interchangeable configuration for every voltage and type of service
Screw mounting
Non-NEMA rating

Specifications

Amperage Rating:	20 A
Color:	Red
Country of Origin:	US
Dimensions:	3-3/4 in L x 3-3/4 in W
Enclosure:	IP67
Grade:	Industrial
Horsepower:	5 hp
Material:	Composite/Thermoplastic
Number of Poles:	3
Number of Wires:	4
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Pressure Screw
Voltage Rating:	480 VAC
