HBL2431SW HWD

Name: HBL2431SW HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL2431SW HWD
Availability: OutOfStock

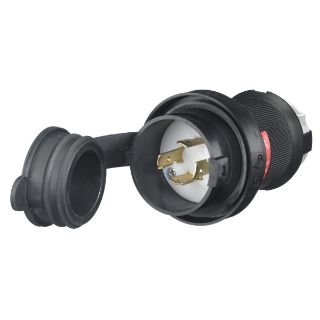

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL2431SW

product.name:

HBL2431SW HWD

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Extra Heavy Duty Grounding Standard Sized Shrouded Watertight Male

Alternate Supplier #

Grainger - 4CV06

Description

Wiring Device-Kellems Twist-Lock® Safety-Shroud® Locking Plug, 3-Phase Grounding Watertight Cord Mount, 480 VAC, 20 A, 5 hp, 3 Pole, 4 Wires, L16-20P NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 2.94 x 2.94 x 4.40 in

Application

Power Connection Applications

Standards

UL 498 | CSA C22.2 No. 42 | Federal Specification WC596 | NEMA WD1/WD5

Features

Impact resistant shroud protects blades against bending and breaking
Reduces exposure to arcing when connecting or disconnecting under load
Superior cord grip design protects terminations from excess strain
Natural white nylon blade holder
Clear polycarbonate terminal retainer
Brass blade, terminal screw and ground screw
Steel nickel plated terminal clamp
Steel, zinc plated cord clamp screw, body holding screw
#10-32 brass (Phillips/slotted/Robertson) terminal screw
Impact modified PBT cord clamp

Specifications

Amperage Rating:	20 A
Color:	Black/White
Cord Diameter:	0.35 to 1.15 in
Country of Origin:	US
Dimensions:	2.94 in L x 2.94 in W x 4.4 in H
Enclosure:	NEMA 4/4X/12/IP66
Grade:	Industrial
Horsepower:	10 hp
Material:	Composite
NEMA Rating:	L16-20P
Number of Poles:	3
Number of Wires:	4
Series:	HBL®
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Pressure Screw
Voltage Rating:	480 VAC
