HBL2420 HWD

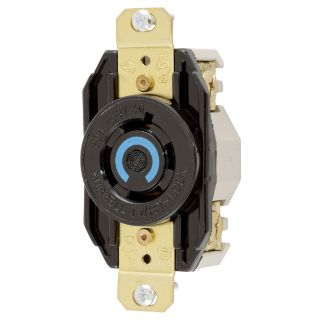

Picture of HBL2420 HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL2420
product.name:
HBL2420 HWD
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Grounding Heavy Duty Single Screw Mount

Alternate Supplier #

Grainger - 4A267

Description

Wiring Device-Kellems Twist-Lock® Locking Receptacle, 3-Phase Grounding Heavy Duty Single Screw Mount, 250 VAC, 20 A, 3 hp, 3 Pole, 4 Wires, L15-20R NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, Black, 3.28 x 1.7 x 1.23 in

Standards

UL 498 | CSA C22.2 No. 42 | Federal Specification WC596 | NEMA WD1/WD5

Features

  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Face color coding by voltage facilitates locating and mating of proper devices
  • Flush mounted
  • Screw mounting
  • 14 to 8 AWG wire size

Specifications

Amperage Rating:20 A
Color:Black
Country of Origin:US
Dimensions:3.28 in L x 1.7 in W x 1.23 in D
Enclosure:NEMA 4/4X/12/IP20
Grade:Industrial
Horsepower:3 hp
Material:Composite/Thermoplastic
NEMA Rating:L15-20R
Number of Poles:3
Number of Wires:4
Series:HBL®
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:250 VAC
