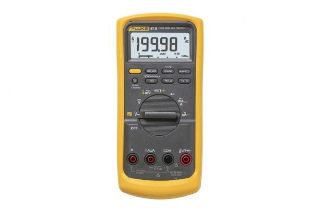

FLUKE-87-5 FLU

Name: FLUKE-87-5 FLU
Brand: Fluke
SKU: FLUKE-87-5 FLU
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Fluke

Manufacturer part number:

FLUKE-87-5

product.name:

FLUKE-87-5 FLU

CBT Inventory

Vendor Inventory

Availability:

Ships in 6-8 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Fluke®

Type

Industrial

Description

When productivity is on the line and you need to solve problems fast, the Fluke® 87V delivers the accuracy and advanced troubleshooting capabilities you need. Designed specifically to handle complex signals, the 87V industrial multi-meter, allows you to gain productivity by taking the guesswork out of drive system troubleshooting even in loud, high energy and high altitude locations.

Fluke® Digital Multimeter, Industrial, 1000 VAC/VDC, 10 A, 200 kHz Frequency, 50 MOhm Resistance, Safety Rating: EN 61010-1 to CAT IV 600 VAC/VDC, CAT III 1000 VAC/VDC, 9999 uF Capacitance, +/-0.7% + 2 for VAC True RMS, +/-0.05%+1 for VDC Accuracy, 20 kHz Bandwidth, 10 uV/0.1 mV Resolution, Analog/Digital Display, 9 VDC Zinc NEDA 1604/6F22/006P V Battery, Peak Hold: Yes, Yes Diode Test, 3.41 in W x 1.25 in D x 7.35 in H Dimensions, -328 to 1994 deg F, Hard Plastic

Application

For measuring voltage, current, frequency and capacitance for everyday use

Standards

Features

Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
Optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks
Large digit display with bright, 2 level backlight makes the 87 V significantly easier to read than older models
True-RMS AC voltage and current for accurate measurements on non-linear signals
Selectable filter for accurate voltage and frequency measurements on motor drives
0.05% DC accuracy
4-1/2 digit mode for precise measurements (20000 counts)
Measure up to 1000 VAC/VDC
Measure up to 10 A, 20 A for up to 30 s
Built-in thermometer lets you carry one less tool (TC probe included), resistance, continuity and diode test, min/max average recording with min max alert to capture variations automatically
Peak capture to record transients as fast as 250 us, relative mode to remove test lead interference from low Ohm measurements
Auto and manual ranging for maximum flexibility
Touch hold to capture stable readings avoiding noisy signals
Classic design with new removable holster with built-in test lead and probe storage
Large display digits and 2 level bright white backlight for increased visibility
Analog bargraph for fast changing or unstable signals
Input alert provides audible warning against wrong use of input jacks
Improved selectable sleep mode for long battery life
400 hours typical battery life with alkaline (with backlight off)

Specifications

Accuracy:	+/-0.7% + 2 for VAC True RMS, +/-0.05%+1 for VDC
Amperage Rating:	10 A
Bandwidth:	20 kHz
Battery Type:	9 VDC Zinc NEDA 1604/6F22/006P V
Capacitance:	9999 uF
Dimensions:	3.41 in W x 1.25 in D x 7.35 in H
Diode Test:	Yes
Display Type:	Analog/Digital
Frequency Rating:	200 kHz
Material:	Hard Plastic
Peak Hold:	Yes
Resistance:	50 MOhm
Resolution:	10 uV/0.1 mV
Safety Rating:	EN 61010-1 to CAT IV 600 VAC/VDC, CAT III 1000 VAC/VDC
Temperature Rating:	-328 to 1994 deg F
Voltage Rating:	1000 VAC/VDC
