FLUKE-771 FLU

Name: FLUKE-771 FLU
Brand: Fluke
SKU: FLUKE-771 FLU
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Fluke

Manufacturer part number:

FLUKE-771

product.name:

FLUKE-771 FLU

CBT Inventory

Vendor Inventory

Availability:

Ships in 6-8 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Fluke®

Type

Milliamp Process

Alternate Supplier #

Grainger - 1LWZ7

Description

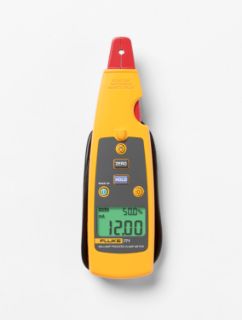

If you need more time in your busy day take a good look at the Fluke® 771 mA clamp meters. It's designed to save you time/and money/by eliminating time wasting activities. Now you can troubleshoot and repair 4 to 20 mA loops without breaking the loop or bringing down the system.

Fluke® Clamp Meter, Milliamp Process, 0 to 100 mA Electrical Rating, Dual Backlit Display, 0.2% + 2 Counts at 0 to 20.99 mA, 1% + 5 Counts at 21 to 100 mA AC Current Accuracy, Safety Rating: IP40, (2) 1.5 VDC AA Alkaline Batteries Power Source, -10 to 50 deg C Operating, 9.29 in L x 4.33 in W x 2.83 in H Dimensions, Hard Plastic

Application

For troubleshoot and repair 4 to 20 mA loops without breaking the loop or bringing down the system

Standards

ECCN: EAR99 | EMI/RFI/EN61326-1

Features

Best in class 0.2% accuracy
0.01 mA resolution and sensitivity
Measure 4 to 20 mA signals without "breaking the loop"
Measure mA signals for PLC and control system analog I/O
Dual backlit display with both mA measurement and percent of 4 to 20 mA span
Measurement spotlight illuminates hard to see wires in dark enclosures
Detachable clamp with extension cable for measurements in tight locations
Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
Automatically change the 4 to 20 mA output for remote testing
Power saving features, auto-Off, backlight timeout extend battery life
Hold function captures and displays changing measurements
Milliamp process clamp meters can measure mA signals without breaking the loop
The popular Fluke® 771 mA clamp meter saves time by making fast/accurate measurements on 4 to 20 mA signal loops without breaking the circuit
0.177 in or 4.5 mm max Dia of measurable conductor, < 90% at <30 deg C, < 75% at 30 to 55 deg C operating humidity, 0 to 2000 m operating altitude, random 2 g, 5 to 500 Hz vibration, 1 meter drop test shock, 0.01% deg C temperature coefficient
0.2% 2 counts for 0 to 20.99 mA/ 1% 5 counts for 21 mA to 100 mA AC current accuracy

Includes

Soft Carrying Case and User Manual

Specifications

AC Current Accuracy:	0.2% + 2 Counts at 0 to 20.99 mA, 1% + 5 Counts at 21 to 100 mA
Dimensions:	9.29 in L x 4.33 in W x 2.83 in H
Display Type:	Dual Backlit
Electrical Ratings:	0 to 100 mA
Material:	Hard Plastic
Operating Temperature:	-10 to 50 deg C
Power Source:	(2) 1.5 VDC AA Alkaline Batteries
Safety Rating:	IP40
