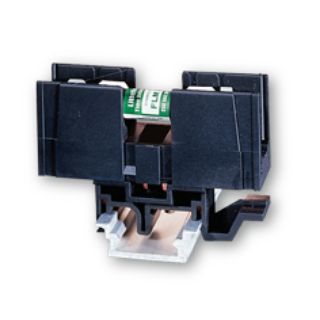

Littelfuse® POWR-GARD® FBDIN1 Fuse Block Din Rail Adapter, For Use With Midget, Class CC and Class G Fuse Block, 30 A, 600 VAC

Manufacturer: Littelfuse

Manufacturer part number: FBDIN1

Availability: Expected Leadtime 6 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Littelfuse®

Description

FBD 1 in is for use with 30 A midget, class CC and class G fuse blocks. The patented design permits snap mounting of Littelfuse® class CC and midget 30 a fuse blocks directly to standard and low profile 35 mm symmetrical inhat in and 32 mm asymmetrical Din-rails. Adapters snap securely to Littelfuse® fuse blocks and to DIN rails without tools. They may be readily removed from rails by lifting the disconnect tab.

Littelfuse® POWR-GARD® Fuse Block Din Rail Adapter, Series: FBDIN1, For Use With: Midget, Class CC and Class G Fuse Block, Specifications: 30 A, 600 VAC, 2.24 in L x 0.77 in W Dimensions

Application

Electrical Applications

Features

DIN rail adaptor for 30 A midget, class CC and class G fuse blocks
Patented design with no tools necessary for installation
Permits snap mounting of 30 A midget, class CC and class G fuse blocks to standard and low profile 35 mm symmetrical DIN-rails and 32 mm asymmetrical DIN-rails
Easy removal via disconnect tab
Standard and low profile

Specifications

Country of Origin:	MX
Dimensions:	2.24 in L x 0.77 in W
Series:	FBDIN1
Specifications:	30 A, 600 VAC
Suitable For Use With:	Midget, Class CC and Class G Fuse Block
