FB2 SHD

Name: FB2 SHD
Brand: SolaHD (Emerson)
SKU: FB2 SHD
Availability: InStock

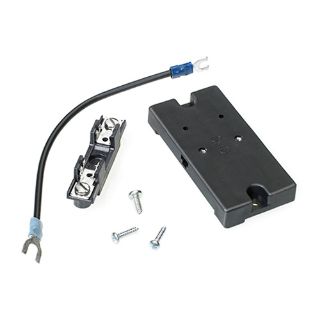

Actual Product May Vary From Image

Product Details

Manufacturer:

SolaHD (Emerson)

Manufacturer part number:

FB2

product.name:

FB2 SHD

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

SolaHD

Type

Automation Transformers - Non-Ventilated 50 VA to 45 kVA

Description

Features: For 1/4 X 1 1/4 IN Glass/Ceramic Fuse, Application: Control Transformer

Application

SolaHD encapsulated transformers are rated for hazardous locations and harsh industrial environments.

Standards

cULus Listed: E25872, E77014, UL 1561 or UL 506, CSA C22.2 No. 47 or No. 66

Features

UL Listed/NEMA Type 3R encapsulated enclosure for indoor and outdoor service; Electrostatically shielded for quality power on sizes 1 kVA and larger; Copper lead wire terminations; .500 - 45 kVA units are capsulated with electrical grade silica and epoxy for industrial applications. Rolled steel enclosure.

Specifications

Connection:	Conduit Knockouts for side entry to wiring compartment
Country of Origin:	MX
Enclosure:	NEMA 3R, Class 1 Div 2 Group A,B,C and D
Frequency Rating:	60 HZ
Input Voltage:	120/208/240/277 Volt Primary VAC
Insulation:	UL Class 200 DEG C Insulation System
Length:	5 IN
Maximum Input Current:	5.4 AMP
Maximum Output Current:	12.5/6.25 AMP
Output Voltage:	120/240 Volt Secondary VAC
Phase:	1
Temperature Rating:	115 DEG C Temperature Rise Under Full Load
Wattage:	1,000 W
Width:	6 IN
