EYS11 APN

Name: EYS11 APN
Brand: Appleton
SKU: EYS11 APN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

EYS11

product.name:

EYS11 APN

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Type

Dust-Ignitionproof Explosionproof Raintight

Alternate Supplier #

Grainger - 10V056

Description

These Appleton® sealing fittings minimize the passage of gases and vapors and prevent the passage of flames from one portion of a conduit system to another. They prevent pressure piling within the conduit system and contain any explosion that occurs. These models in the EYS series provide a close turning radius and can be used for sealing vertical or horizontal conduit runs.

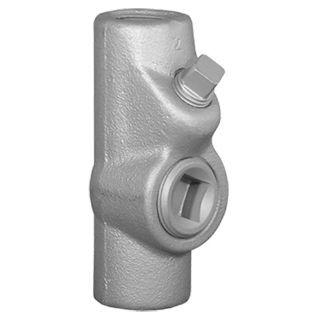

Appleton® UNILETS® Conduit Sealing Fitting, Dust-Ignitionproof Explosionproof Raintight, Series: EYS, 1/2 in, For Use With: IMC/Threaded Rigid Metallic Conduit, Grayloy-Iron, Gray, Triple Coated, 3.69 in L x 1.25 in W

Application

For prevent passage of gases, vapors or flames from one portion of conduit system to another

Standards

UL 886 | UL 1203 File No. E10444 | CSA C22.2 No. 30 | CSA 065181, Class I, Groups A, B, C, D, Class II, Groups E, F, G, Class III

Features

Smooth, rounded integral bushing in each hub to protect conductor insulation
Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub
Large opening for damming and filling
Restrict any explosion to the sealed off enclosure
Required in Class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures
Required in Class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps
Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location
Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit, seal must be located within 18 in of either enclosure
Required where cables which exceed rate of gas or vapor transmission permitted for seals are used in Class I, Division 2 locations
Tapered FNPT connection
25% fill vertical and horizontal conduit sealing fittings for close turning radius
Chromate/epoxy powder coated/zinc electroplated finish

Specifications

Color:	Gray
Country of Origin:	MX
Dimensions:	3.69 in L x 1.25 in W
Finish:	Triple Coated
Material:	Grayloy-Iron
Series:	EYS
Size:	1/2 in
Suitable For Use With:	IMC/Threaded Rigid Metallic Conduit
