EV18-P47B-L PAN

Name: EV18-P47B-L PAN
SKU: EV18-P47B-L PAN
Availability: OutOfStock

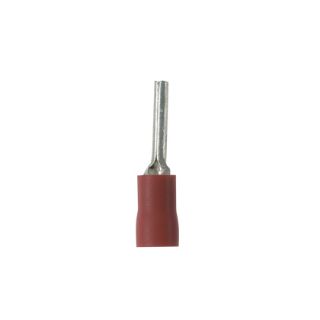

Actual Product May Vary From Image

Product Details

Manufacturer part number:

EV18-P47B-L

product.name:

EV18-P47B-L PAN

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

This product has a minimum quantity of 50

Description

Brand Name

Panduit®

Type

Disconnect Insulated

Description

Panduit® StrongHold™ Pin Terminal, Insulated, Series: PV Series, Solid/Stranded Conductor, 22 to 18 AWG Conductor, 1.8 mm Pin Dia, 0.49 in Pin Length, 600 VAC, 5/16 in L Wire Strip, 3.8 mm Dia Maximum Wire Insulation, Vinyl Insulation, Brazed Seam Barrel, Funnel Entry Barrel Configuration, Copper, 221 deg F, 0.97 in Overall Length, Red

Application

For CT-100A, CT-260, CT-1550, CT-1551, CT-2300/ST with CD-550 and CT-2500/L with CT-2550CH crimping tools

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | UL 587H/E52164/94 V-0

Features

Solid pin designed to prevent damage to the wire from over tightening, resulting in a reliable electrical connection
Brazed seam protects terminal barrel from splitting during the crimp process
Internal barrel serrations assure good wire contact and maximum tensile strength
Barrel of terminal internally beveled to provide quick and easy wire insertion
Pin shape enclosure
Tin-plated finish

Specifications

Color:	Red
Conductor Size:	22 to 18 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Material:	Copper
Overall Length:	0.97 in
Pin Diameter:	0.07 in
Pin Length:	0.49 in
Series:	PV Series
Specifications:	5/16 in L Wire Strip, 0.15 in Dia Insulation
Temperature Rating:	221 deg F
Voltage Rating:	600 VAC
