EV10-10FB-Q PAN

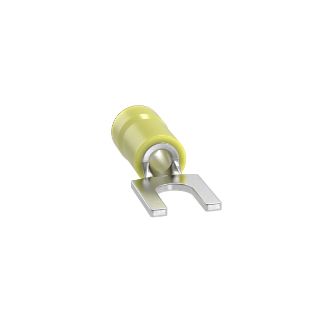

Picture of EV10-10FB-Q PAN
Actual Product May Vary From Image

Product Details

Manufacturer part number:
EV10-10FB-Q
product.name:
EV10-10FB-Q PAN
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit®

Type

Type EV-FB Loose Piece

Description

Panduit® StrongHold™ Fork Terminal, Type EV-FB Loose Piece, Stranded Copper Conductor, 12 to 10 AWG Conductor, #10 Stud, 1.04 in Length, Butted Seam/Funnel Entry Barrel, 0.52 in L Barrel, Standard Tongue, 0.52 in L x 0.37 in W x 0.04 in THK Tongue, 600 VAC, Specifications: 0.31 in L Wire Strip, 0.23 in Dia Maximum Wire Insulation, 221 deg F, Copper/Vinyl, Tin Plated, Yellow

Application

For CT-100A, CT-600-A, CT-1550, CT-1551, CT-2300/ST and CT-2500/L crimping tools

Standards

ARRA Compliant | Buy American Act Compliant | CSA File No. LR31212 | cULus 587H File No. E52164 | RoHS Compliant | UL 587H File No. E52164 | UL94 V-0 Flammability Rated

Features

For use with CT-100A, CT-600-A, CT-1550, CT-1551, CT-2300/ST and CT-2500/L crimping tools

Specifications

Barrel Size:0.52 in L
Barrel Type:Butted Seam/Funnel Entry
Color:Yellow
Conductor Size:10 AWG
Conductor Type:Stranded Copper
Country of Origin:MX
Finish:Tin Plated
Length:1.04 in
Material:Copper
Specifications:0.23 in Dia Vinyl Insulation, 0.31 in Mounting Hole Size, 5/16 in L Wire Strip
Stud Size:#10
Temperature Rating:221 deg F
Tongue Size:0.37 in W x 0.04 in THK
Tongue Type:Fork
Voltage Rating:600 VAC
