ESV10BX-Q PAN

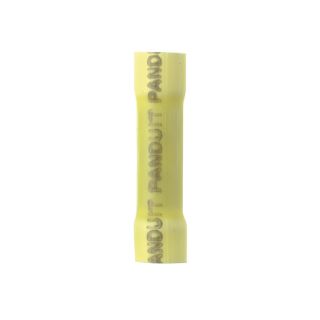

Picture of ESV10BX-Q PAN
Actual Product May Vary From Image

Product Details

Manufacturer part number:
ESV10BX-Q
product.name:
ESV10BX-Q PAN
CBT Inventory
25
Vendor Inventory
Loading...
Availability:
Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request
This product has a minimum quantity of 25

Description

Brand Name

Panduit®

Type

Expanded

Description

Panduit® StrongHold™ Butt Splice, Expanded, 12 to 10 AWG Conductor, Expanded Barrel, Specifications: 7.9 mm L Wire Strip, Vinyl Nylon Insulation, Copper, Yellow, TiN Coated

Application

For CT-100A, CT-600-A, CT-1550, CT-1551, CT-2300/ST and CT-2500/L crimp tools

Standards

ARRA Compliant | Buy American Act Compliant | CSA Certified | CSA File No. LR31212 | RoHS Compliant | UL 587H File No. E52164 | UL Listed

Features

  • Designed to splice two solid or stranded wires together to repair or lengthen wires
  • Butted configuration provides low profile for limited space applications
  • Internal wire stop assures proper length of insertion into terminal barrel

Specifications

Barrel Type:Brazed/Expanded/Funnel Entry
Color:Yellow
Conductor Size:12 to 10 AWG
Conductor Type:Solid/Stranded Copper
Country of Origin:MX
Finish:TiN Coated
Length:1.18 in
Material:Copper
Specifications:0.31 in Mounting Hole Size, 1/4 in Dia Vinyl Insulation, 5/16 in L Wire Strip
Temperature Rating:221 deg F
Voltage Rating:300 V
