ER10 TKN

Name: ER10 TKN
Brand: Timken
SKU: ER10 TKN
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

ER10

product.name:

ER10 TKN

CBT Inventory

Vendor Inventory

Please login to see accurate availability

Estimated dates are contingent upon manufacturer stock.

Price on Request

You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken

Description

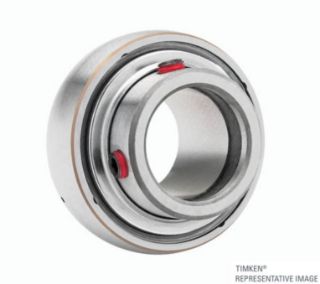

Designed to maximize performance, Timken® Fafnir® ball bearing inserts are designed for straight shafts and can be positioned without shoulders, locknuts or adapters. Timken® locking options include set screws, self-locking collars and concentric collars. Timken Fafnir ball bearing inserts feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line

Wide Inner Ring Ball Bearing Insert | 15.748 mm 0.62 in Bore | 47 mm 1.85 in OD | Setscrew locking

Specifications

Bearing Material:	Steel
Bearing Type:	Wide Inner Ring Bearing
Bore Type:	Round
Cage (Retainer) Type:	PRB Retainer
Cage Material:	Nylon
Component (I/R; O/R assembly):	Assembly
Duty Type:	Standard duty
Dynamic Load Rating:	2880
Inner Race Width (in):	1.2213
Inner Race Width (mm):	31.02102
Internal Clearance:	P(C3)
Load Rating UOM:	LB
Locking Type:	Setscrew locking
Lubrication Hole/Groove:	yes
Material - Rolling Elements:	Steel
Outer Diameter (in):	1.85
Outer Diameter (mm):	47
Outer Diameter Type:	Cylindrical
Outer Race Width (in):	0.625
Outer Race Width (mm):	15.875
Overall Width (in):	1.21
Overall Width (mm):	30.734
Precision class:	ISO Normal/ABEC1
Relubricatable:	yes
Rolling Element:	Ball
Shaft Size (in):	0.62
Shaft Size (mm):	15.748
Snap Ring:	yes
Static Load Rating:	1070
